Stryker Physio-Control Lifepak 15

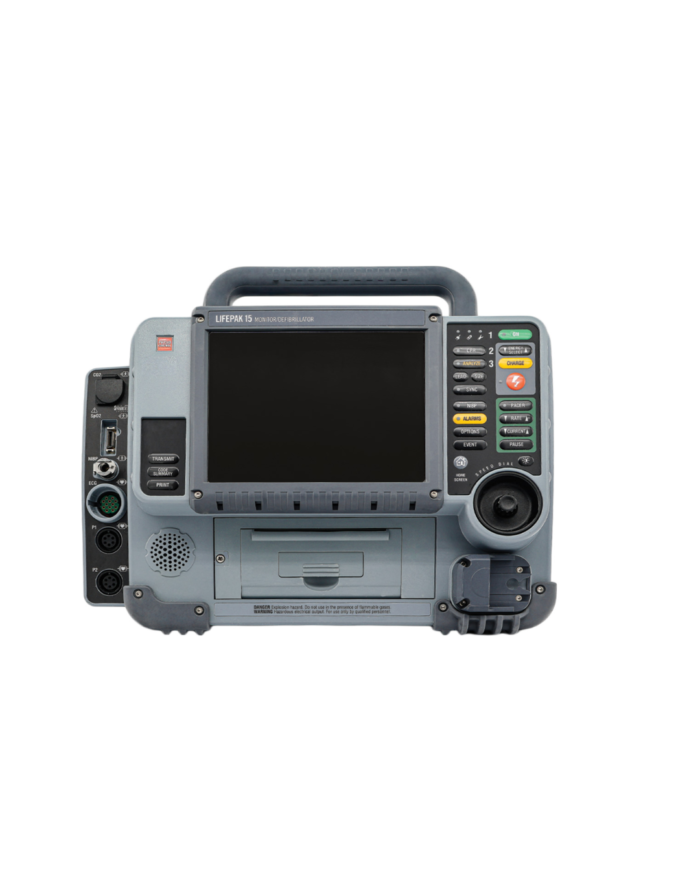

Stryker Physio-Control Lifepak 15 Defibrillator/Monitor

The Stryker Physio-Control Lifepak 15 is a high-capability defibrillator/monitor engineered for advanced cardiac resuscitation and comprehensive patient monitoring. It continuously monitors all 12 leads in the background while offering multiple operating modes—including AED for automated external defibrillation, Manual Mode for direct control, Archive, Setup, Service, and Demo modes. The system integrates advanced features such as EtCO₂ waveform capture and Masimo Rainbow SET technology for noninvasive monitoring of SpO₂, carbon monoxide, and methemoglobin levels. With CODE-STAT data review software, users can transmit, trend, or display recorded data for post-event review. Additionally, the Lifepak 15 comes with a bright 8.4″ color LCD screen, a 100mm printer, and a robust lithium-ion dual battery system, all designed to facilitate rapid, reliable response during emergencies.

Key Features

• Multi-Mode Operation:
  • AED Mode: Automated ECG analysis with shock advisory for patients in cardiac arrest.
  • Manual Mode: Provides manual defibrillation, synchronized cardioversion, noninvasive pacing, and continuous ECG/vital sign monitoring.
  • Archive, Setup, Service, and Demo Modes: Enable record management, configuration, diagnostics, and training simulations.
• Advanced Monitoring Capabilities:
  • Continuous 12-lead ECG monitoring in the background.
  • Captures EtCO₂ waveforms with continuous waveform capture.
  • Incorporates Masimo Rainbow SET technology for SpO₂, carbon monoxide, and methemoglobin monitoring.
• Data Management & Connectivity:
  • CODE-STAT software allows for transmission, trending, and display of patient data and critical event records.
  • Supports both wired (RS232, serial) and Bluetooth wireless communication for data transfer.
• User-Friendly Design:
  • Bright 8.4″ color LCD screen with customizable display settings.
  • Easy-to-use 1-2-3 operation and front panel controls.
  • Includes a 100mm printer for event and waveform documentation.
• Robust Battery & Portability:
  • Powered by a dual lithium-ion battery system for up to 100 hours of monitoring (depending on configuration) and multiple full-energy discharges.
  • Designed for portability to facilitate rapid response in emergency settings.
• Comprehensive ECG Monitoring:
  • Supports various cable configurations: 3-wire (3-lead), 5-wire (7-lead), and 10-wire (12-lead) setups.
  • Offers configurable lead selection and preset heart rate alarms.

Detailed Specifications

Physical Characteristics

• Dimensions:
  • Height: 31.7 cm (12.5 in)
  • Width: 40.1 cm (15.8 in)
  • Depth: 23.1 cm (9.1 in)
• Weight:
  • Basic model with QUIK-COMBO cable only: 7.9 kg (17.5 lb)
  • Fully featured model with pacing and SpO₂: 8.4 kg (18.5 lb)

Accessories

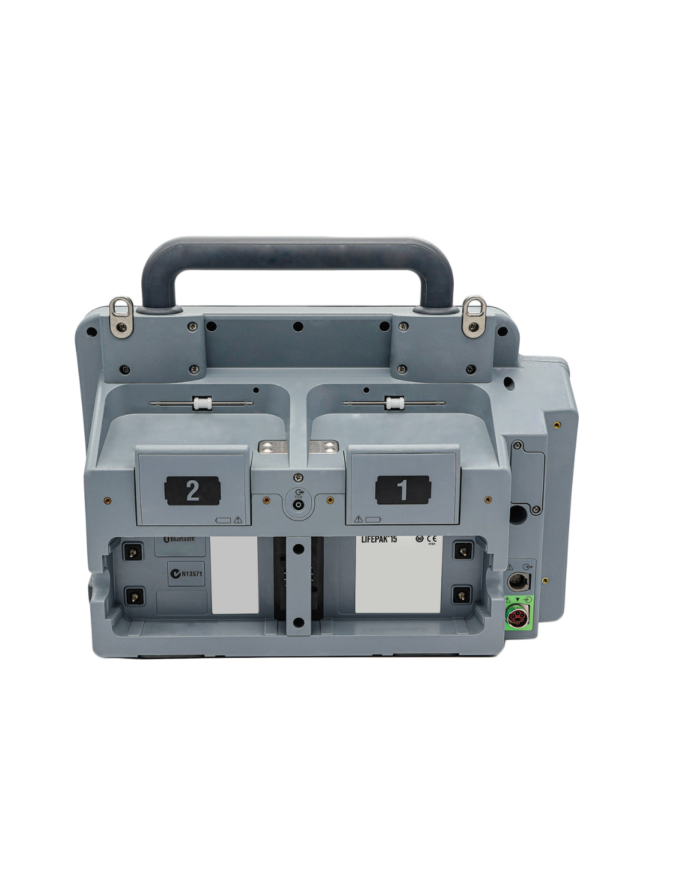

• Batteries:
  • Lithium-ion battery: ~0.6 kg (1.3 lb)
• Additional Accessories:
  • Accessory bags and shoulder strap: 1.77 kg (3.9 lb)
  • Standard (hard) paddles: 0.95 kg (2.1 lb)

Display & Monitoring

• Display Size:
  • 6.7 in wide x 5 in high (LCD, 480p) or
  • 6.5 in wide x 4.9 in high (EL display)
• ECG Monitoring:
  • Simultaneous monitoring via 3-wire, 5-wire, or 10-wire cable configurations.
  • ECG trace amplitude options: 4, 3, 2.5, 2, 1.5, 1, 0.5, and 0.25 cm/mV (fixed at 1 cm/mV for 12-lead).
• Heart Rate Display:
  • Digital readout from 20 to 300 bpm; accuracy of ±4% or ±3 bpm, whichever is greater.
• QRS Detection:
  • Duration: 40 to 120 msec; Amplitude: 0.5 to 5.0 mV.
• Frequency Response:
  • Monitor: 0.5 to 40 Hz or 1 to 30 Hz (user configurable)
  • Paddles: 2.5 to 30 Hz
  • 12-lead ECG Diagnostic: 0.05 to 150 Hz

Data Management & Communication

• Memory Capacity:
  • Total capacity: 360 minutes of continuous ECG, 90 minutes of continuous data, or 400 single waveform events.
  • Maximum for a single patient: up to 200 single waveform reports and 90 minutes of continuous ECG.
• Report Types:
  • CODE SUMMARY critical event records (short, medium, long formats), continuous waveform (transfer only), trend summary, vital sign summary, snapshot.
• Communications:
  • Supports data transfer via internal modem, external EIA/TIA modem, cellular modem, or serial connection.
  • Compatible with EIA/TIA-602 and EIA/TIA-232E protocols.
  • Bluetooth technology for short-range wireless communication.

Operating Modes

• AED Mode:
  • Automated ECG analysis and shock advisory with voice prompts.
• Manual Mode:
  • Manual defibrillation with synchronous cardioversion, noninvasive pacing, and comprehensive monitoring.
• Archive Mode:
  • Enables transmission, printing, editing, or deletion of patient records.
• Setup Mode:
  • For configuring device settings.
• Service Mode:
  • For diagnostic tests and calibrations.
• Demo Mode:
  • Provides simulated waveforms and trend graphs.
