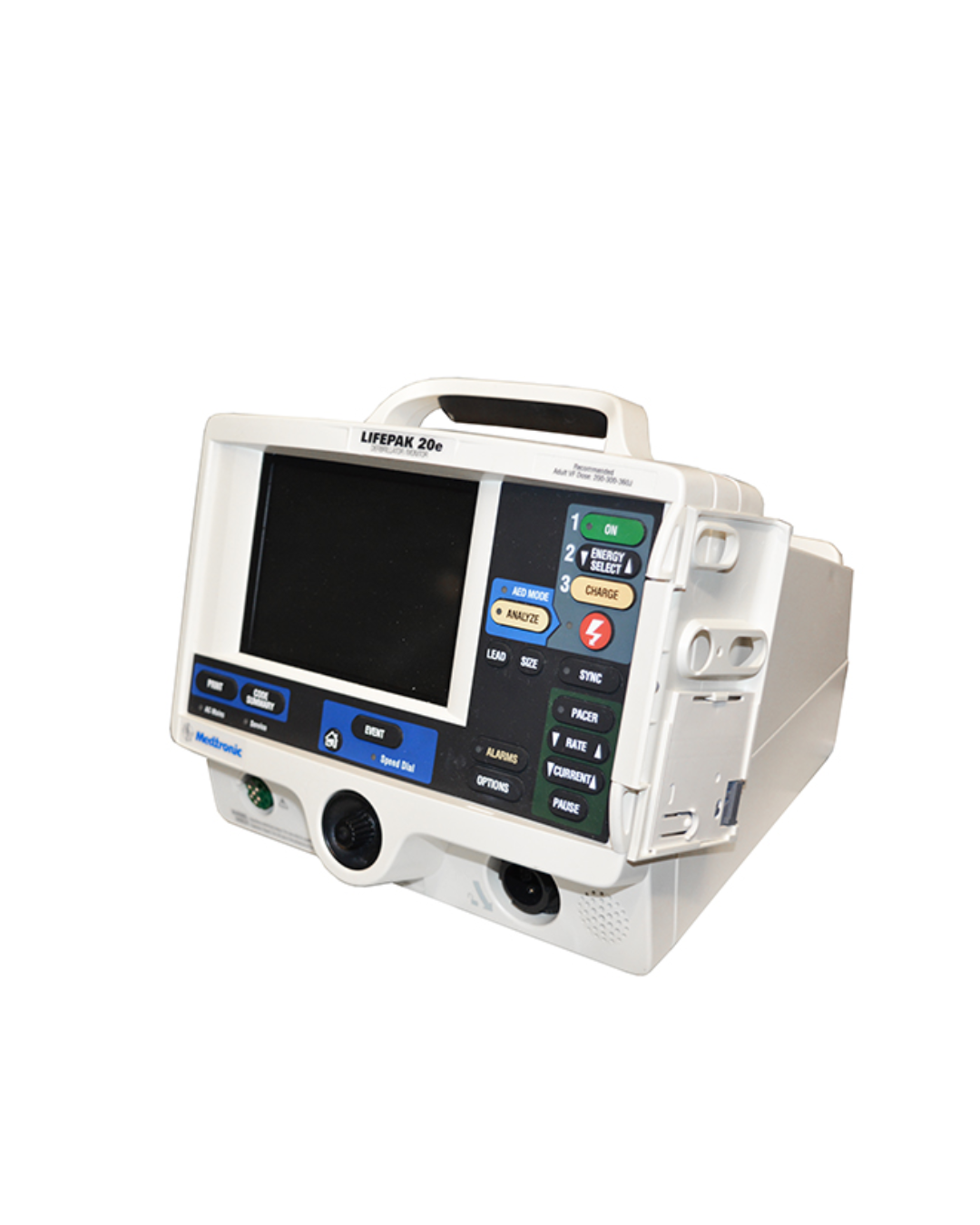

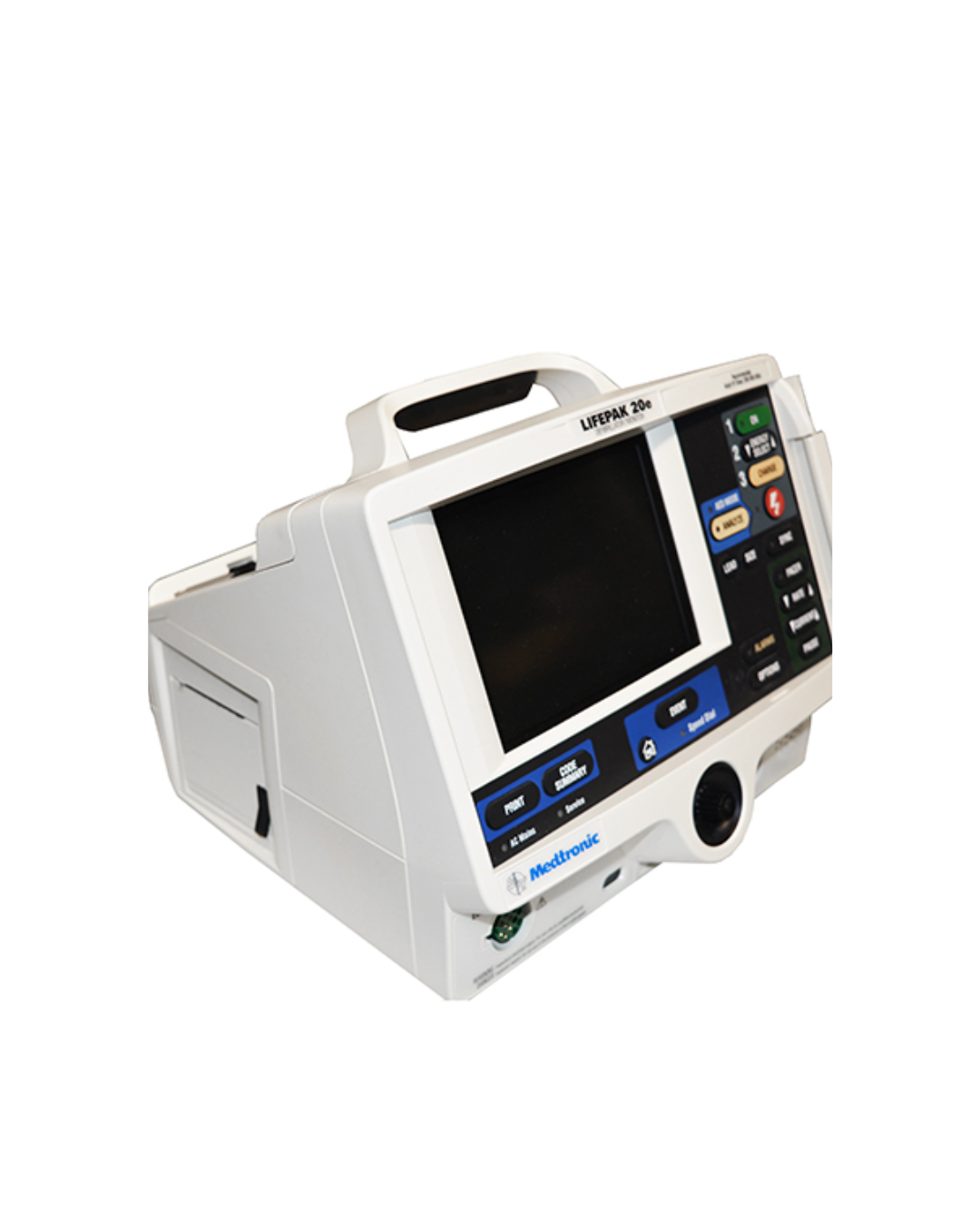

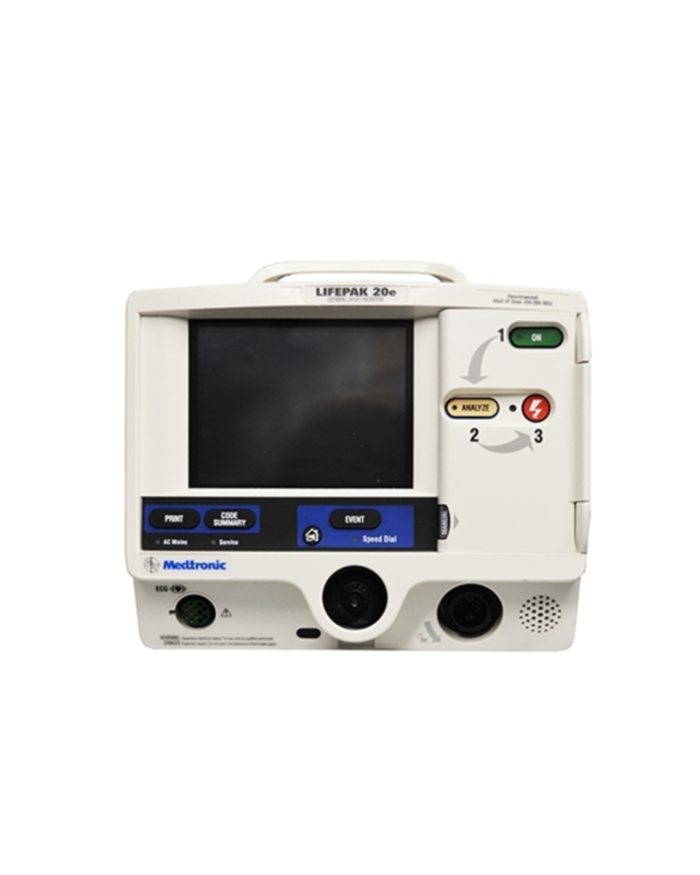

Stryker Physio-Control Lifepak 20e Defibrillator/Monitor

The Stryker Physio-Control Lifepak 20e is an advanced, all-in-one defibrillator and monitor designed for rapid resuscitation and continuous patient monitoring. Combining manual and automatic (AED) defibrillation modes with integrated ECG monitoring, the Lifepak 20e is engineered to deliver timely therapy in emergency settings. It features a robust Code Management module that supports waveform capnography and wireless connectivity, allowing seamless data transmission and report generation. The primary upgrade over the Lifepak 20 is the inclusion of a rechargeable lithium-ion battery, ensuring extended run time and quick recharge, along with a vibrant LCD color screen that displays critical waveforms and CPR statistics. Its compact and durable design makes it ideal for mounting on a crash cart, stretcher, or bedside.

Key Features

• Dual-Mode Defibrillation:
  • Offers both manual defibrillation (up to 360 joules with synchronous cardioversion and pacing) and AED modes with an integrated Shock Advisory System.
• Advanced Monitoring:
  • Continuously monitors 3 or 5-lead ECG, with the ability to display additional waveforms.
  • Supports optional monitoring of SpO₂, noninvasive blood pressure, EtCO₂, and other vital parameters.
• Code Management Module:
  • Allows for waveform capnography, data trending, and wireless connectivity to the hospital network for comprehensive post-event review.
• Enhanced Display:
  • Features a bright LCD color screen with an active viewing area of approximately 115 mm x 86 mm, offering clear visualization of waveforms and alphanumeric data.
• Robust Power Options:
  • Operates on AC power with an internal rechargeable lithium-ion battery backup.
  • Battery provides 110–210 minutes of run time in AED mode.
• User-Friendly Operation:
  • Simple 1-2-3 operation for fast, hands-free defibrillation.
  • Integrated printer for continuous ECG strip output and CODE SUMMARY reports.

Detailed Specifications

Physical Specifications

• Dimensions:
  • Height: 8.4 in (21.3 cm)
  • Width: 10.3 in (26.2 cm)
  • Depth: 10.3 in (26.2 cm)
• Weight:
  • 12.3 lb (5.58 kg)

Display

• Active Viewing Area:
  • Approximately 115.18 mm (4.53 in) wide x 86.38 mm (3.4 in) high
• Resolution:
  • 320 x 240 dot color active LCD
• Waveform Display:
  • Sweep speed: 25 mm/sec for ECG and SpO₂
• Viewing Duration:
  • Minimum 3.7 seconds of ECG and alphanumeric data for instructions and prompts
• Optional:
  • Capability to display one additional waveform

Power & Battery

• AC Power:
  • Operates at 100–120 VAC (50/60 Hz) or 220–240 VAC (50/60 Hz) with total power draw <120 VA.
• Battery:
  • Rechargeable internal lithium-ion battery
  • Battery Charge Time: <4 hours (when powered off and connected to AC)
  • Run Time: 110–210 minutes of AED operation depending on usage

Printer

• Printing Capability:
  • Prints continuous ECG strips at a speed of 25 mm/sec ±5%
  • Delay: 8 seconds before printing begins
  • Paper Size: 50 mm (2.0 in) wide

Frequency Response

• Diagnostic Mode:
  • 0.05 to 150 Hz or 0.05 to 40 Hz (user configurable)
• Monitor Mode:
  • 0.67 to 40 Hz or 1 to 30 Hz (user configurable)
• Paddles:
  • 2.5 to 30 Hz
• Analog ECG Output:
  • 0.67 to 32 Hz (except 2.5 to 30 Hz for paddles)

Alarms

• Alarm Features:
  • Quick Set: Activates alarms for all parameters
  • VF/VT Alarm: Activates continuous CPSS monitoring in Manual Mode

Connectivity

• Data Management:
  • Capable of transferring and printing patient records via internal modem, external serial interfaces, or wireless connections (Bluetooth, IrDA)
