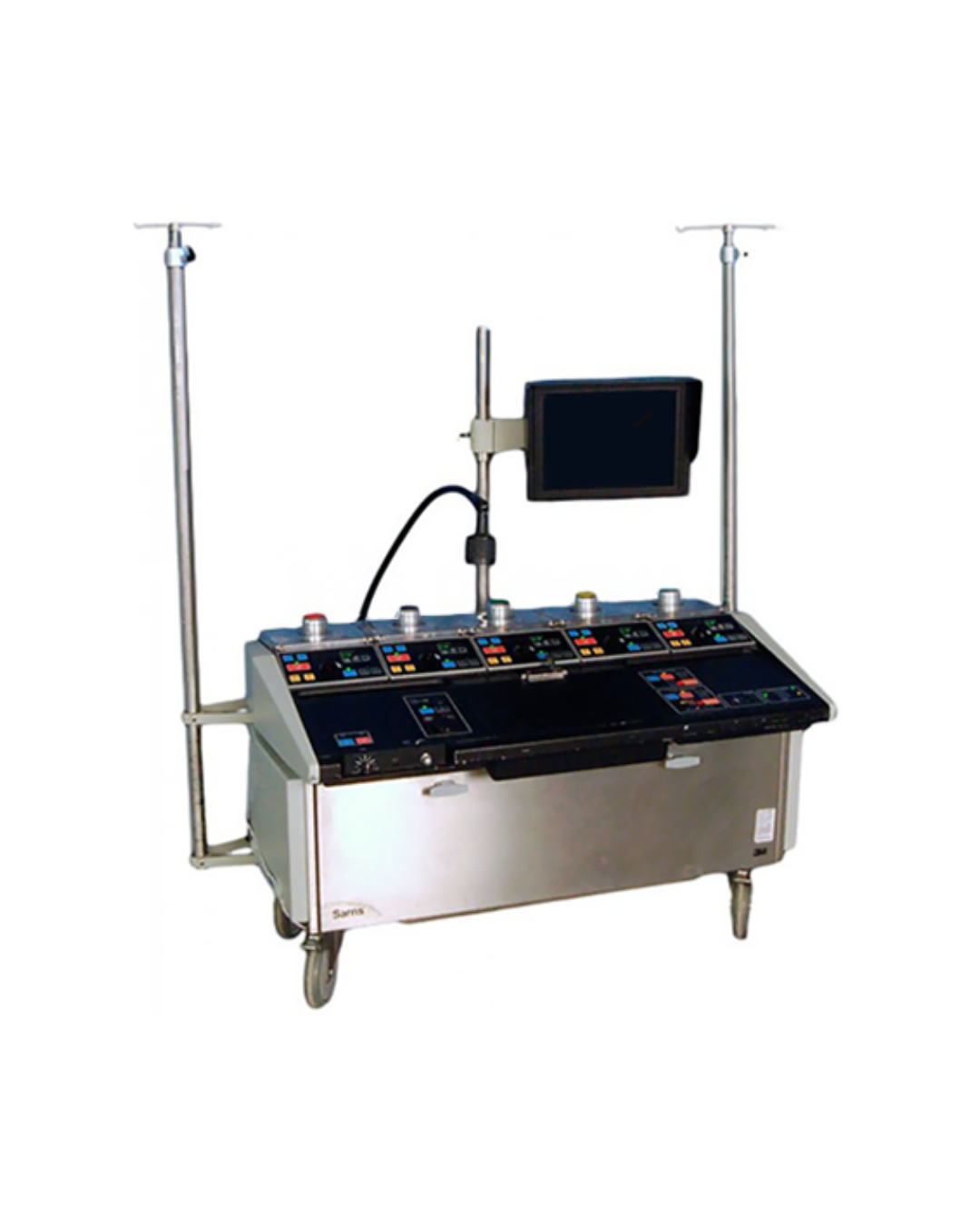

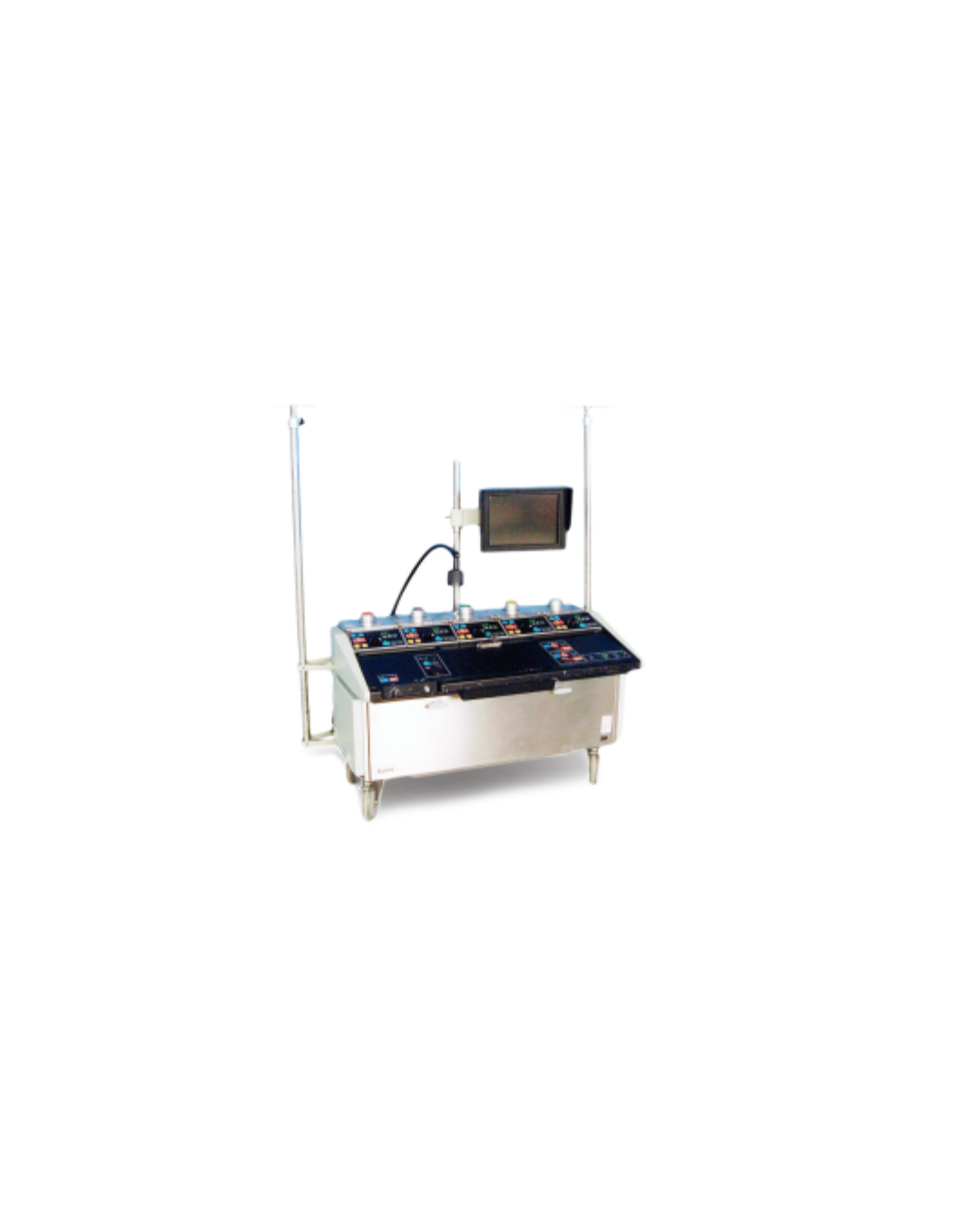

Terumo Sarns 9000 Perfusion System

The Terumo Sarns 9000 Perfusion System is a state-of-the-art extracorporeal circulation device designed for arterial perfusion, regional perfusion, and cardiopulmonary bypass procedures. This advanced system features an occluder for rapid or gradual adjustment of venous line blood flow, ensuring optimal perfusion management during critical cardiac surgeries. With a continuously charged backup battery pack that automatically takes over in case of AC power failure, the Sarns 9000 delivers reliable performance even under emergency conditions. An optional water mixing system enables precise temperature control for cardioplegia and arterial heat exchangers by blending hot and cold water from a wall supply, allowing rapid adjustments to patient temperature.

Key Features

• Advanced Flow Control:

  • Equipped with an occluder to rapidly or gradually adjust venous line blood flow.
  • Dual control mechanisms protect arterial flow with redundancy.

• Robust Safety and Monitoring:

  • Integrated air-bubble detection ensures prompt removal of air to prevent embolism.
  • Multiple sensors provide immediate feedback on arterial flow, oxygenation, and fluid levels.
  • Automatic battery backup system maintains full system functionality during power outages.

• Temperature Management:

  • Optional water mixing system for cardioplegia and arterial heat exchangers provides precise temperature control by mixing hot and cold water.

• Versatile Pump Options:

  • Compatible with either a roller or centrifugal pump for arterial perfusion.
  • Offers both continuous and pulsatile operating modes for tailored patient support.

• User-Centric Design:

  • Clear, integrated displays and alarms, with prioritized status messages, guide the operator.
  • Ergonomic controls and a modular design facilitate easy setup and operation.

Detailed Specifications

Console and System Dimensions

• Console Dimensions:

  • Height: 25.3 in (64.3 cm)
  • Width: 45.3 in (115.1 cm)
  • Depth: 24 in (61 cm)

• Pump Dimensions:

  • Height: 9 in (20.3 cm)
  • Width: 8.75 in (22.2 cm)
  • Depth: 14 in (35.6 cm)

• Central Display:

  • Height: 10.5 in (26.7 cm)
  • Width: 14.1 in (35.8 cm)
  • Depth: 3.2 in (8.1 cm)

Weight and Optional Components

• Roller Pump Weight:
  • Approx. 31 lbs (14.5 kg)
• Centrifugal Pump Weight:
  • 15 lbs (6.9 kg)
• Total System Weight:
  • 470 lbs (213 kg)
• Optional Water Mixer:
  • Additional 60 lbs (27.2 kg)

Pump Performance

• Roller Pump Characteristics:

  • Tubing: Maximum outer diameter of 0.75 in (1.9 cm); wall thickness range 0.0625 to 0.09375 in (0.16 to 0.24 cm)
  • Recommended durometer range: 58–68
  • Speed: 0–200 RPM; display accuracy ±2 RPM (0–200 RPM), ±1% of actual speed (200–248/258 RPM); resolution 1 RPM
  • Flow Rate: 0.00–9.99 L/min (displays 999 when >9.99 L/min)
  • Operating Modes: Continuous or Asynchronous Pulsatile

• Centrifugal Pump Characteristics:

  • Speed Display Range: 0–9999 RPM, actual speed 0–3600 RPM
  • Flow Sensing Range: 0.7 to 7.0 L/min with accuracy ±0.1 L/min (0.7–1.0 L/min) and ±10% (1.0–7.0 L/min)
  • Outflow Capacity: 0–9.9 L/min
  • Outflow Pressure: 0–700 mmHg
  • For 0.375” ID tubing: 0.50–9.90 L/min in 0.1 L/min increments (displays 999 when >9.90 L/min)
  • Operating Modes: Continuous flow or Asynchronous Pulsatile

Operating Environment

• Temperature:
  • Operating: 10°C to 40°C; Storage: -18°C to 60°C
• Humidity:
  • Operating: 10% to 95%; Storage: 10% to 90% (non-condensing)
• Atmospheric Pressure:
  • 700 to 1060 mBar

Additional Safety Features

• Air Bubble Detection:
  • Integrated air-bubble detection system for both roller and centrifugal pumps.
• Control System:
  • Provides alarms and status messages to guide the operator during critical procedures.
