Zeiss Extaro 300

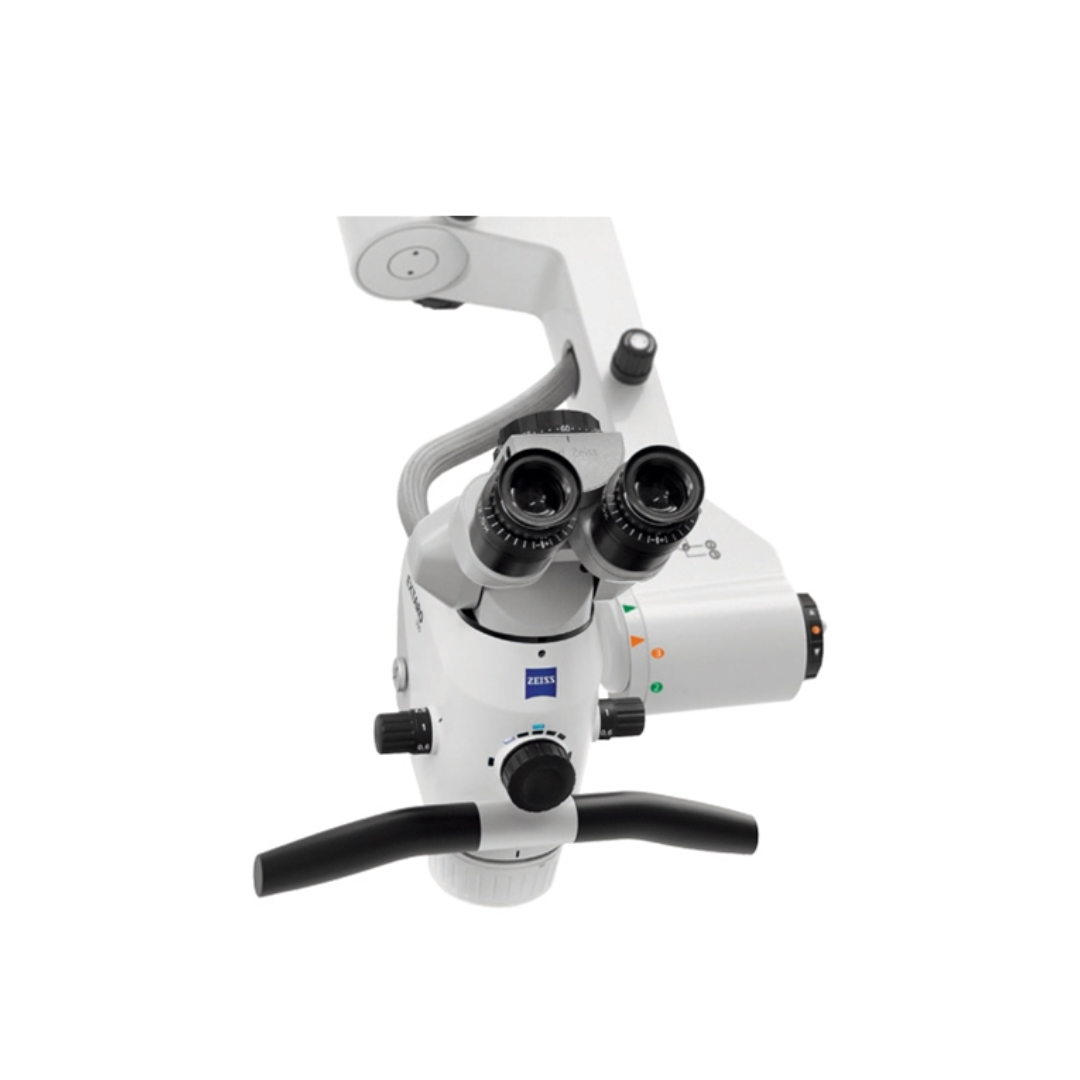

Zeiss Extaro 300 Surgical Microscope

The Zeiss Extaro 300 is a high-precision surgical microscope designed specifically for ENT surgeries. With an adjustable working range from 200mm to 430mm, the Extaro 300 delivers sharp, high-contrast visualization with integrated LED illumination for natural color representation. Its 5-step magnification system allows for detailed imaging at various levels, while the intuitive user interface ensures single-handed operation for smooth adjustments.

This versatile microscope offers multiple mounting options, including ceiling, wall, and floor stand configurations, making it adaptable to any clinical setting. The TriLED illumination system provides consistent, high-intensity lighting, enhancing visibility and procedural accuracy.

Key Features

• Adjustable working distance: 200mm – 430mm for precise focus
• 5-step magnification: Allows for varied levels of zoom based on surgical needs
• Integrated LED illumination: TriLED system for true-to-life color representation
• Single-handed operation: Easily adjust focus and magnification with one hand
• Multiple mounting options: Ceiling-mounted, wall-mounted, or floor stand
• User-friendly interface: Simplifies workflow and operation

Zeiss Extaro 300 Specifications

Dimensions (Floor Stand)

• Height: 68.3” (173.5 cm)
• Width (Fully Extended): 88” (223.5 cm)
• Width (Base): 29.3” (74.5 cm)
• Depth (Base): 24.2” (61.5 cm)

Optical & Functional Features

• Magnification: 5-step magnification system
• Focus: Varioskop 230 with adjustable working distance (200 – 430 mm)
• Illumination: TriLED system for high-intensity, natural-colored lighting
• Control System: Single-hand operation for quick adjustments

Tube & Eyepiece Options

• Tubes:
  • Straight binocular tube
  • 180° tiltable tube
  • Foldable tube (f170 / f260)
• Eyepieces:
  • 10x wide-field eyepieces
  • 12.5x wide-field eyepieces

The Zeiss Extaro 300 is an advanced ENT surgical microscope that offers high-precision optics, ergonomic control, and exceptional illumination. With versatile mounting options and intuitive single-hand operation, it enhances workflow efficiency and surgical accuracy.
