Zeiss OPMI 6

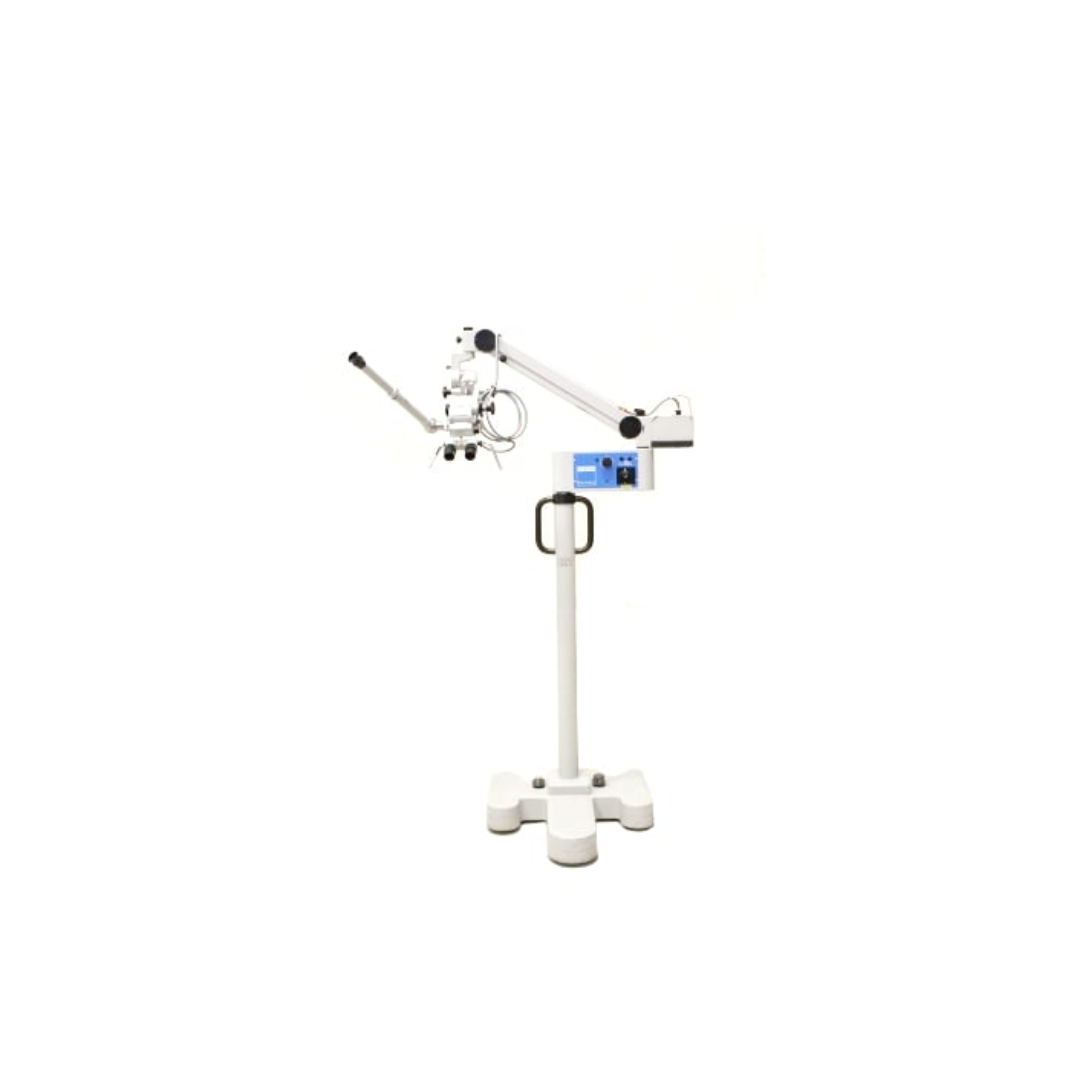

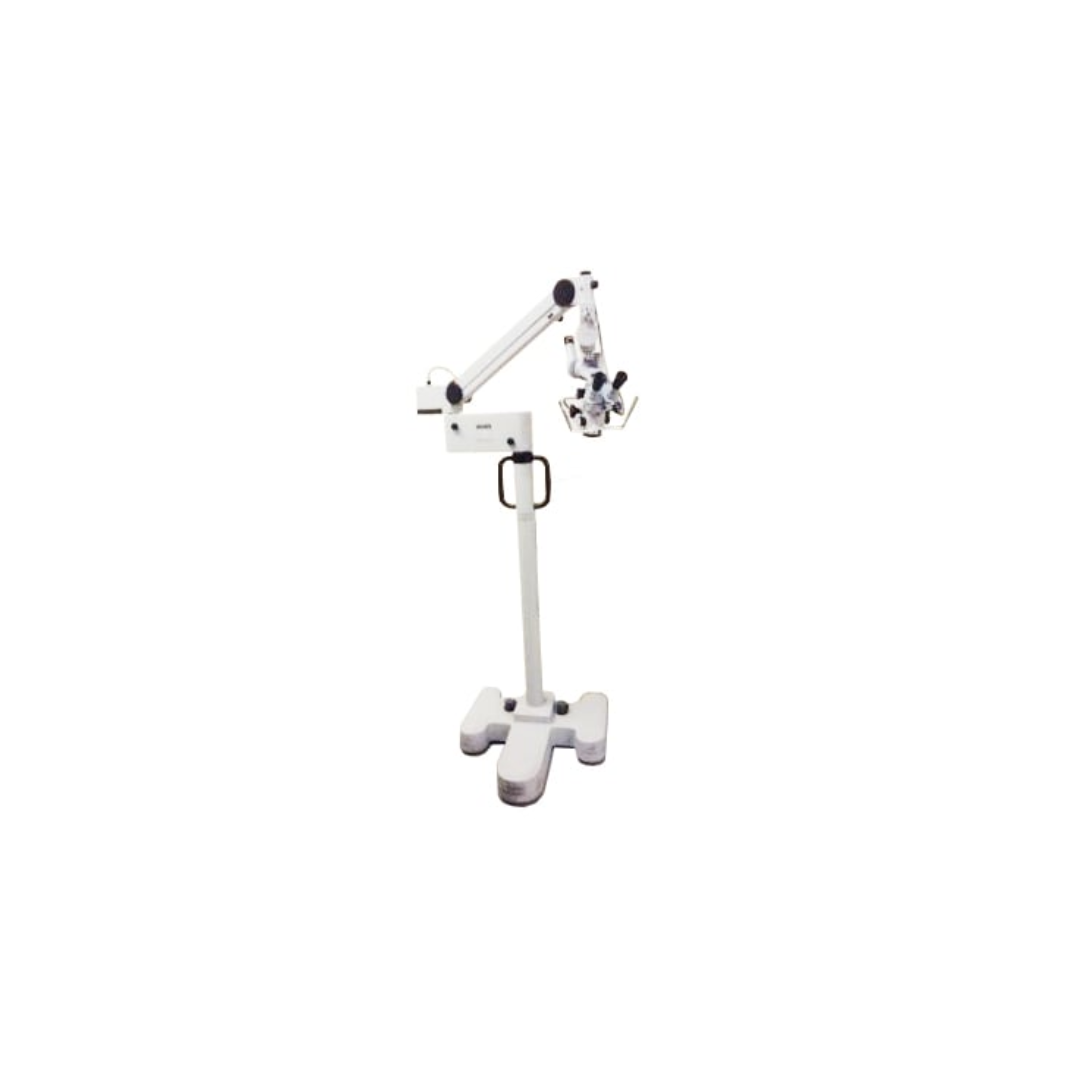

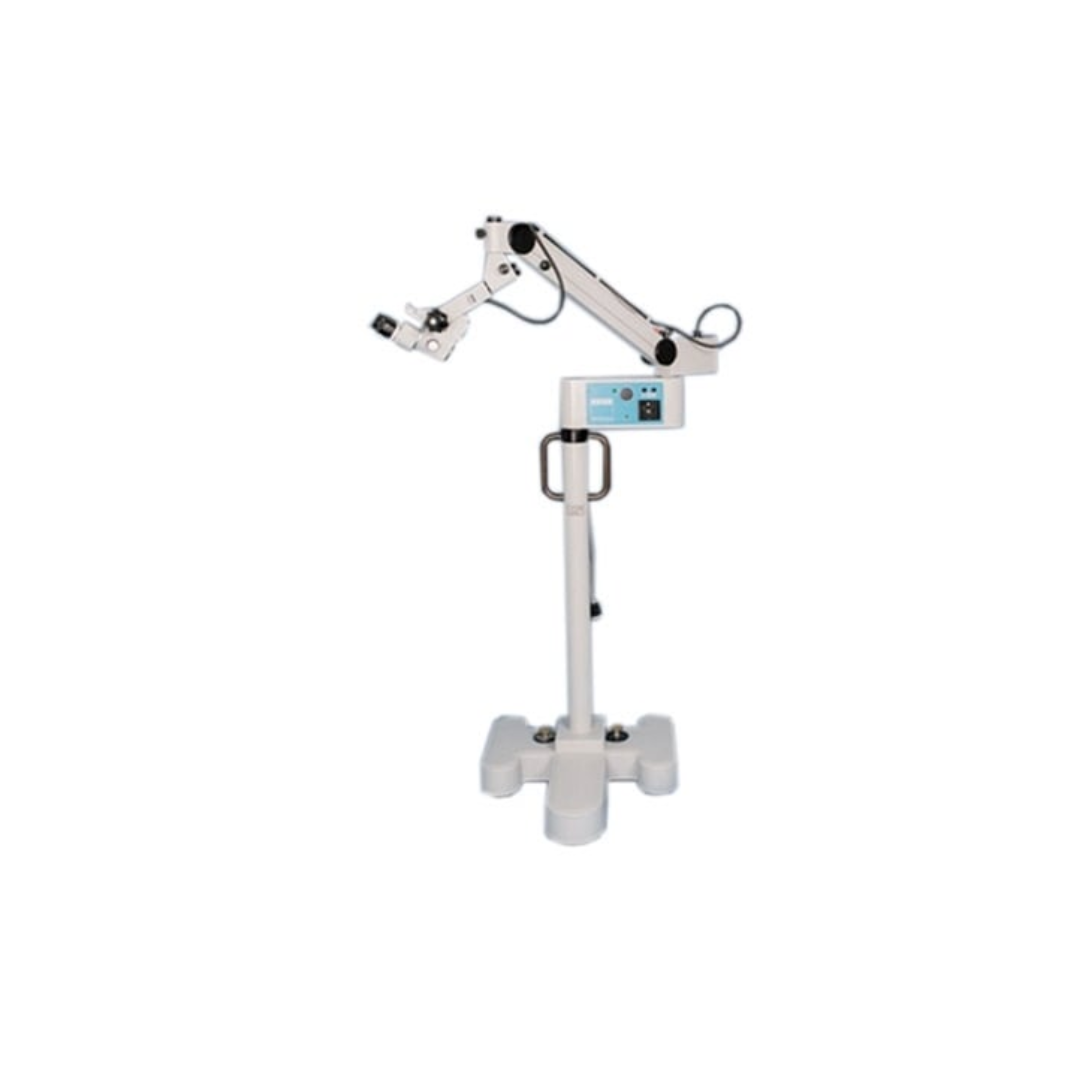

Zeiss OPMI 6 on S3 Stand

The Zeiss OPMI 6 surgical microscope is specifically designed for ophthalmic procedures, offering a sharp optical view, excellent depth of focus, and a compact, lightweight body. It features inclined binoculars with high-quality eyepieces, providing enhanced red-reflex and superior clarity for eye surgeries.

The OPMI 6 utilizes Zeiss’s Visual series technology to enhance usability and performance, making it one of the most cost-effective microscopes for ophthalmic applications. Its motorized magnification and focus system, combined with an external light source, ensure precision and reliability during procedures.

Key Features

• excellent red-reflex for improved visualization in ophthalmic surgeries
• motorized 1:4 magnification changer for precise adjustments
• inclined binoculars with 12.5x wide-field eyepieces
• motorized focus system with 50mm travel range
• high-quality Zeiss optics for sharp imaging and depth of field
• external 15V, 150W light source for bright, uniform illumination
• mounted on the Zeiss S3 floor stand with a sturdy, counterbalanced design

Zeiss OPMI 6 Specifications

Microscope

• binocular: inclined f=125mm (optional: 0-60 inclinable f=160mm or 0-60 widefield f=170mm)
• objective lens options: 175mm, 200mm
• magnification: motorized 1:4, 0.5 – 2.0
• focus: motorized with 50mm travel
• eyepieces: 12.5x HEP push-in
• pupillary distance: 50mm – 70mm
• filter: standard UV

Illumination

• light source: external 15V, 150W
• illuminated field: 48mm

Power and Mounting

• power source: 110 – 240V, 50-60Hz
• stand type: Zeiss S3 floor stand
• horizontal reach: arm 24”, end of optics 27”
• vertical range: 72”
• rotation angle: 350°
• shipping weight: 220 lbs (including counterbalancing weights)

The Zeiss OPMI 6 on the S3 stand is an excellent choice for ophthalmic surgeons looking for a reliable, cost-effective surgical microscope. Its combination of advanced optics, motorized controls, and ergonomic design makes it a valuable tool in eye surgery.
