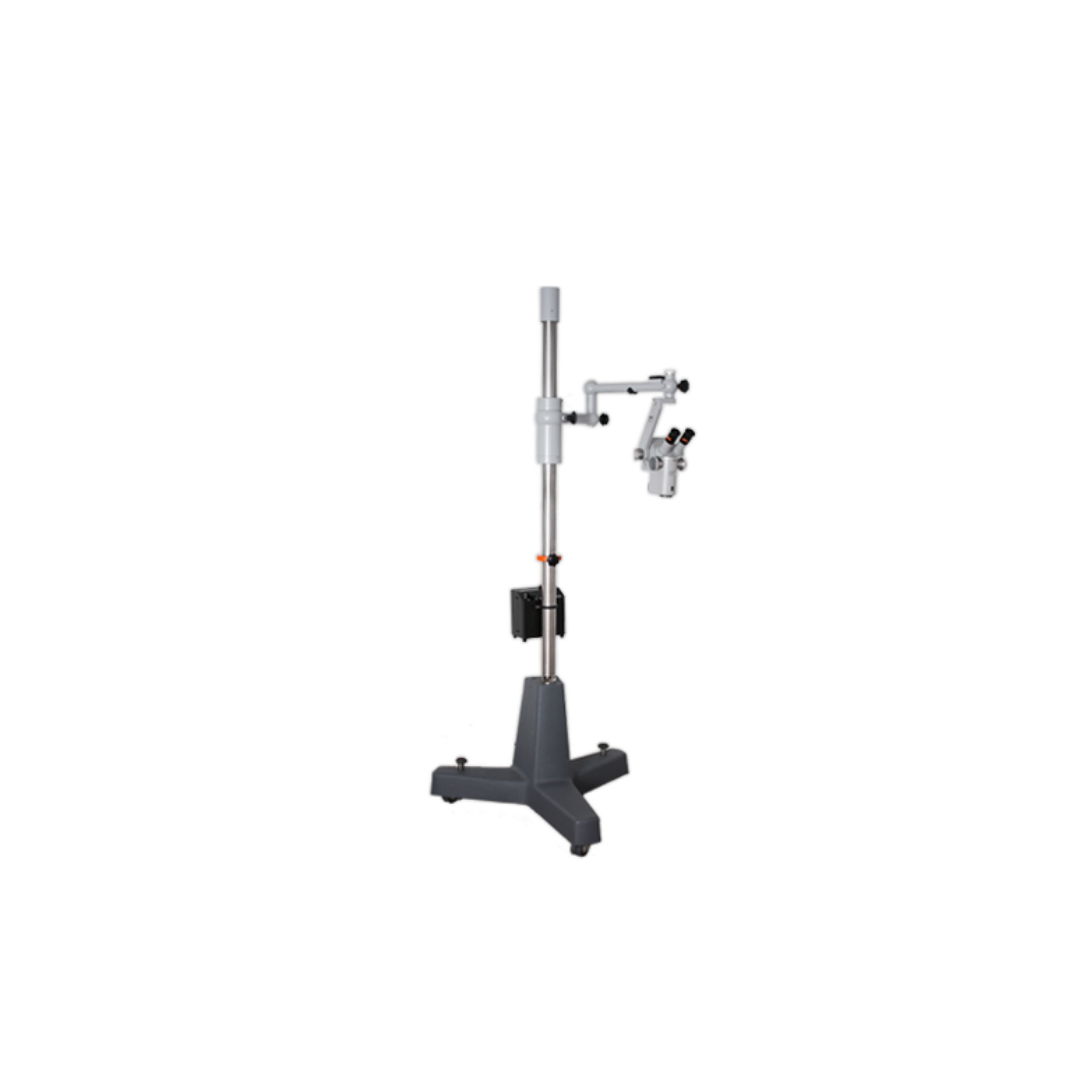

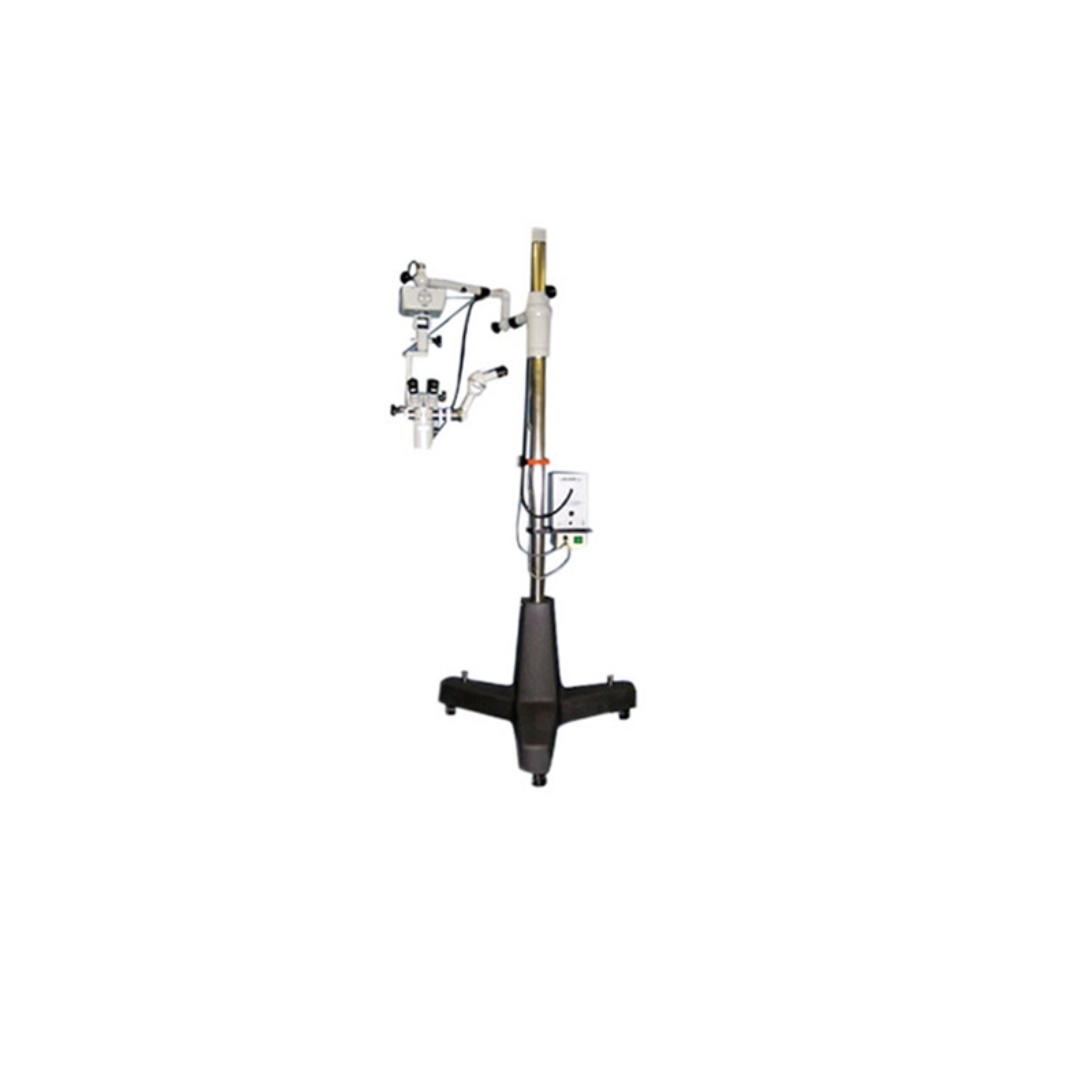

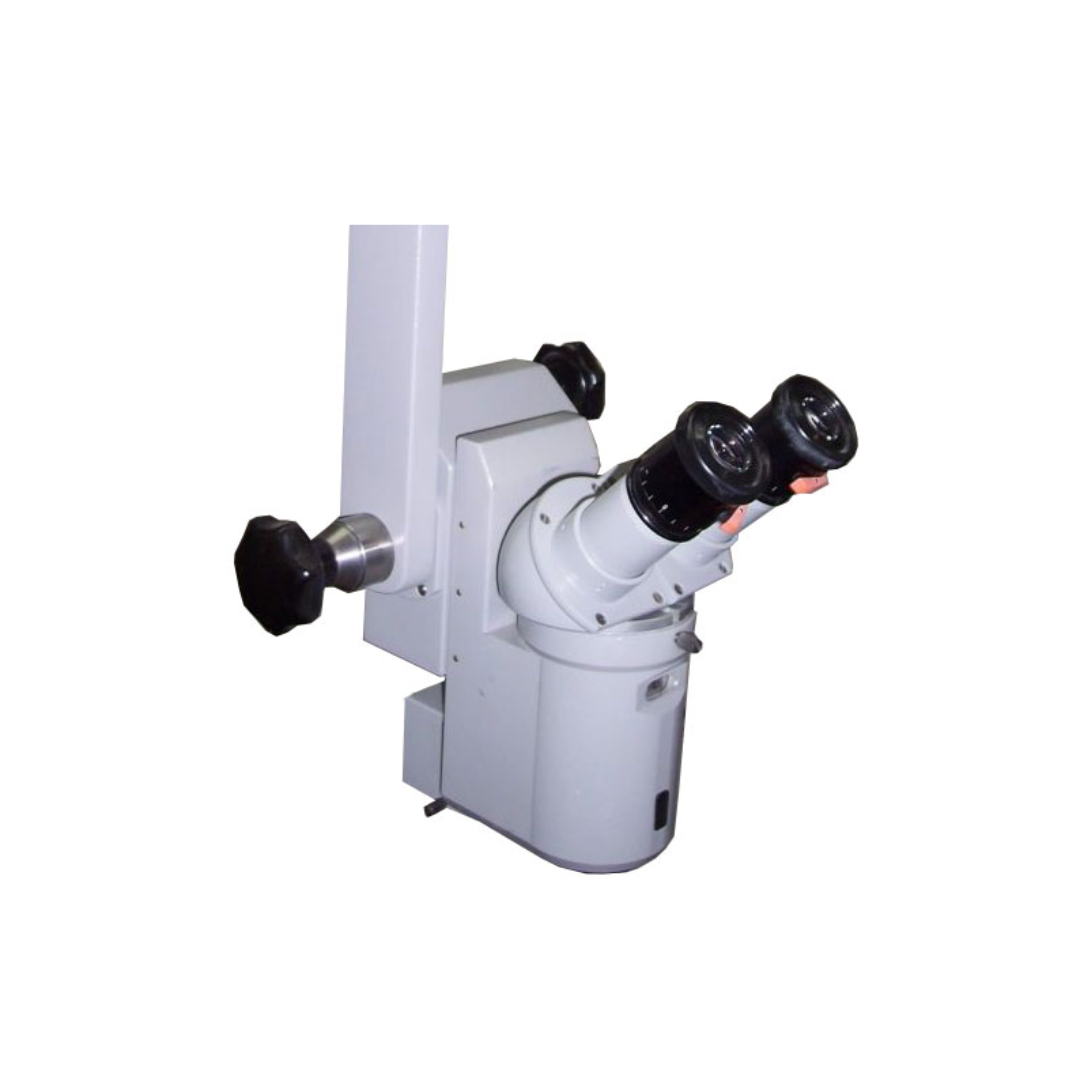

Zeiss OPMI 6S on 1880 Stand
The Zeiss OPMI 6S-FC surgical microscope is a trusted choice for ophthalmic procedures, known for its superior optical clarity and enhanced red-reflex capabilities. The same technology that made the OPMI 6S-FC reliable has been incorporated into the newer Visu series, emphasizing simplicity and high performance.
Mounted on the Zeiss 1880 stand, this system is an excellent value package for cataract surgery, offering renowned Zeiss optics, XY movement, and a powerful 150-watt illumination system. These features ensure a uniform and clear view of the posterior capsule, making it a preferred option for ophthalmic surgeons.
Key Features
- exceptional value for a complete ophthalmic surgical microscope
- enhanced red-reflex for superior visualization in cataract procedures
- motorized magnification and focus with precise adjustments
- inclinable binoculars with 12.5x wide-field eyepieces
- Zeiss XY2 system for smooth, precise movements
- powerful 100W integrated illumination for clear, bright imaging
- ergonomic and stable Zeiss 1880 floor stand
Zeiss OPMI 6S-FC Specifications
Microscope
- binocular: 0-60 inclinable, f=160mm (optional: 0-60 or 0-180 wide-field, f=170mm)
- objective lens options: 175mm, 200mm
- magnification: motorized 1:4, 0.5 – 2.0
- focus: motorized with 50mm travel
- eyepieces: 12.5X screw-in (optional: 10x 22B, 12.5x 18B wide-field)
- pupillary distance: 55mm – 75mm
- filter: standard UV
Illumination
- light source: integrated 12V, 100W
- illuminated field: 48mm
Power and Mounting
- power source: 110 – 240V, 50-60Hz
- stand type: Zeiss 1880 universal stand
- horizontal reach: arm 48”, end of optics 50”
- vertical range: 28”
- rotation angle: 320°
- shipping weight: 330 lbs
The Zeiss OPMI 6S-FC on the 1880 stand is a highly reliable and cost-effective solution for ophthalmic surgeries. Its precision optics, ergonomic design, and advanced movement capabilities make it an excellent choice for surgeons seeking quality and efficiency in their procedures.
