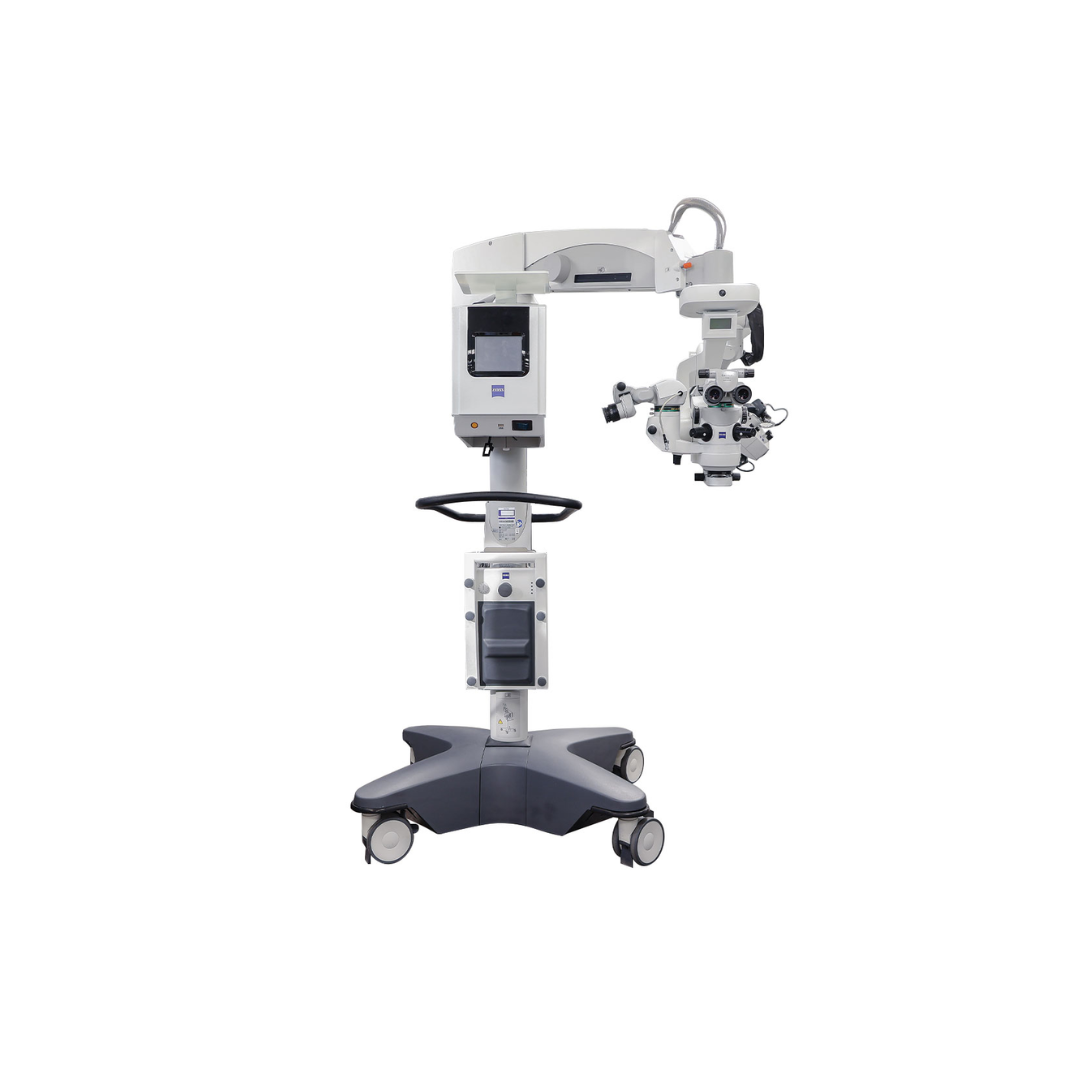

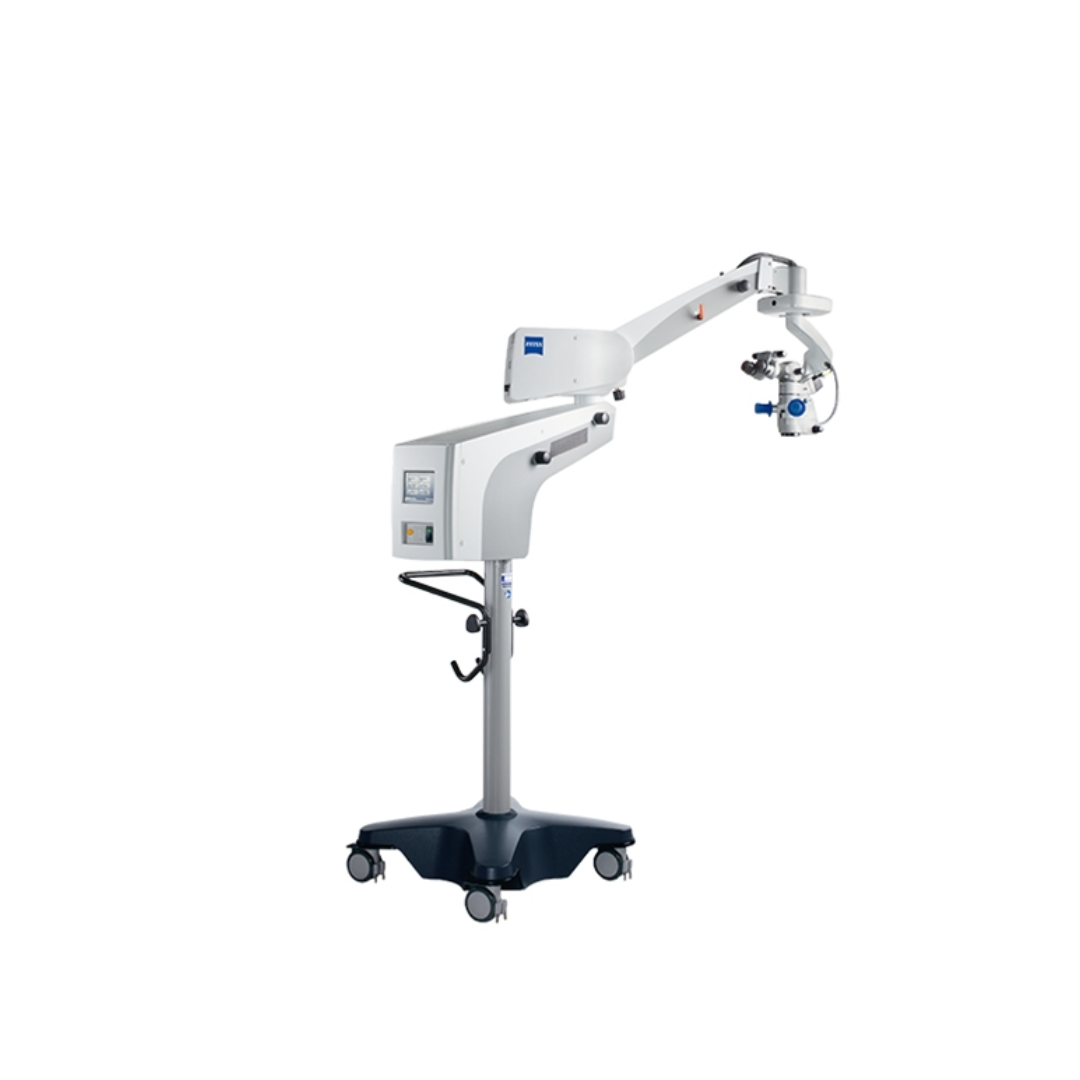

Zeiss OPMI LUMERA i

Zeiss OPMI Lumera i

The Zeiss OPMI Lumera i is a high-performance surgical microscope designed to enhance clarity, contrast, and stability for ophthalmic procedures. Equipped with Stereo Coaxial Illumination (SCI), it provides razor-sharp contours and allows surgeons to clearly visualize intricate ocular structures, even in cases of dense cataracts. The microscope also features the DeepView depth of field management system, allowing seamless switching between maximum transmission and maximum depth of field as needed.

For enhanced collaboration, the OPMI Lumera i can be equipped with a stereo co-observation tube, enabling a second viewer to see the surgical field at the same magnification level. Its integrated video camera control unit allows for real-time transmission to an external monitor, making it an excellent choice for teaching environments.

With a motorized zoom, apochromatic optics, and intuitive touchscreen controls, the Lumera i optimizes surgical workflow and enhances precision in cataract and retina surgeries.

Key Features

• Stereo Coaxial Illumination (SCI): Provides bright, vivid illumination for superior red reflex and ocular clarity
• DeepView System: Allows easy switching between maximum transmission and maximum depth of field
• Integrated Video Camera Control: Enables real-time transmission to an external monitor
• Motorized Zoom System: 1:6 zoom ratio with apochromatic optics
• Touchscreen Stand Controls: Simplifies microscope adjustments for a smoother workflow
• Binocular Co-Observation: Optional stereo co-observation tube for simultaneous viewing
• Red Reflex Illumination: Enhances surgical visualization and detail

Zeiss OPMI Lumera i Specifications

Surgical Microscope

• Apochromatic optics
• Motorized zoom system with 1:6 zoom ratio
• Magnification factors: 0.4 to 2.4
• Focusing range: 50 mm
• Binocular tube: 0-180° tiltable tube (optional invertertube)
• Eyepieces: 10x (optional 12.5x)
• Objective lens: f = 200 mm (optional f = 175 mm)

Illumination

• SCI: Red reflex illumination and surrounding field illumination (both adjustable)
• Integrated 408 nm UV barrier filter
• Blue-blocking filter for retinal protection
• Fiber optic illumination
• Optional fluorescence filter

Light Source

• 12V, 100W halogen light source with fully automatic bulb change in case of failure

X-Y Coupling

• 61 mm x 61 mm adjustment range
• Free programmable button for setting starting positions of X-Y coupling, focus, and zoom

Weight

• 18.74 lbs (8.5 kg) (including 180° inclinable binocular tube, objective lens, and eyepieces)

Suspension System

• Floor stand
• Maximum load capacity: 14 kg (complete microscope equipment, including accessories)
