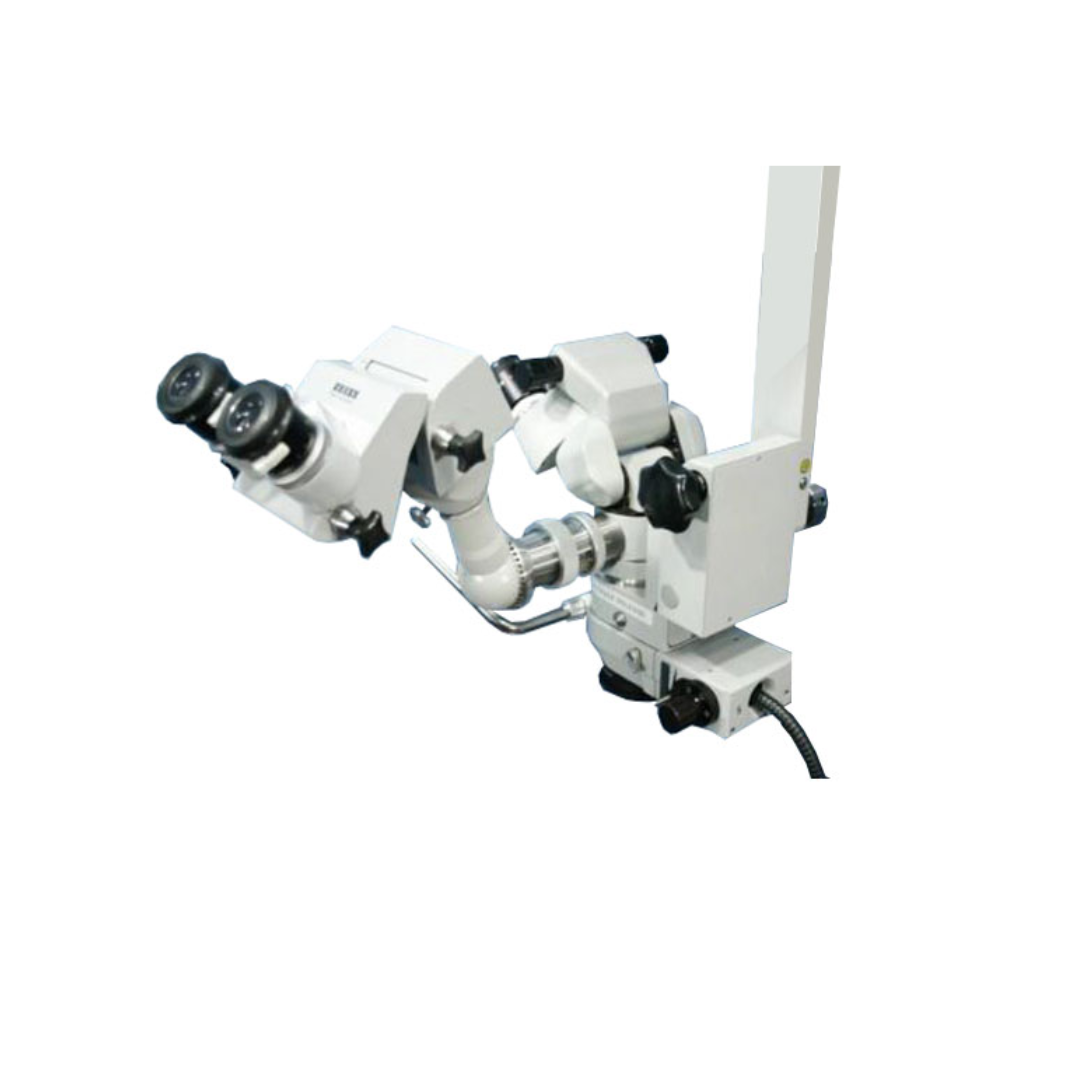

Zeiss OPMI MDU

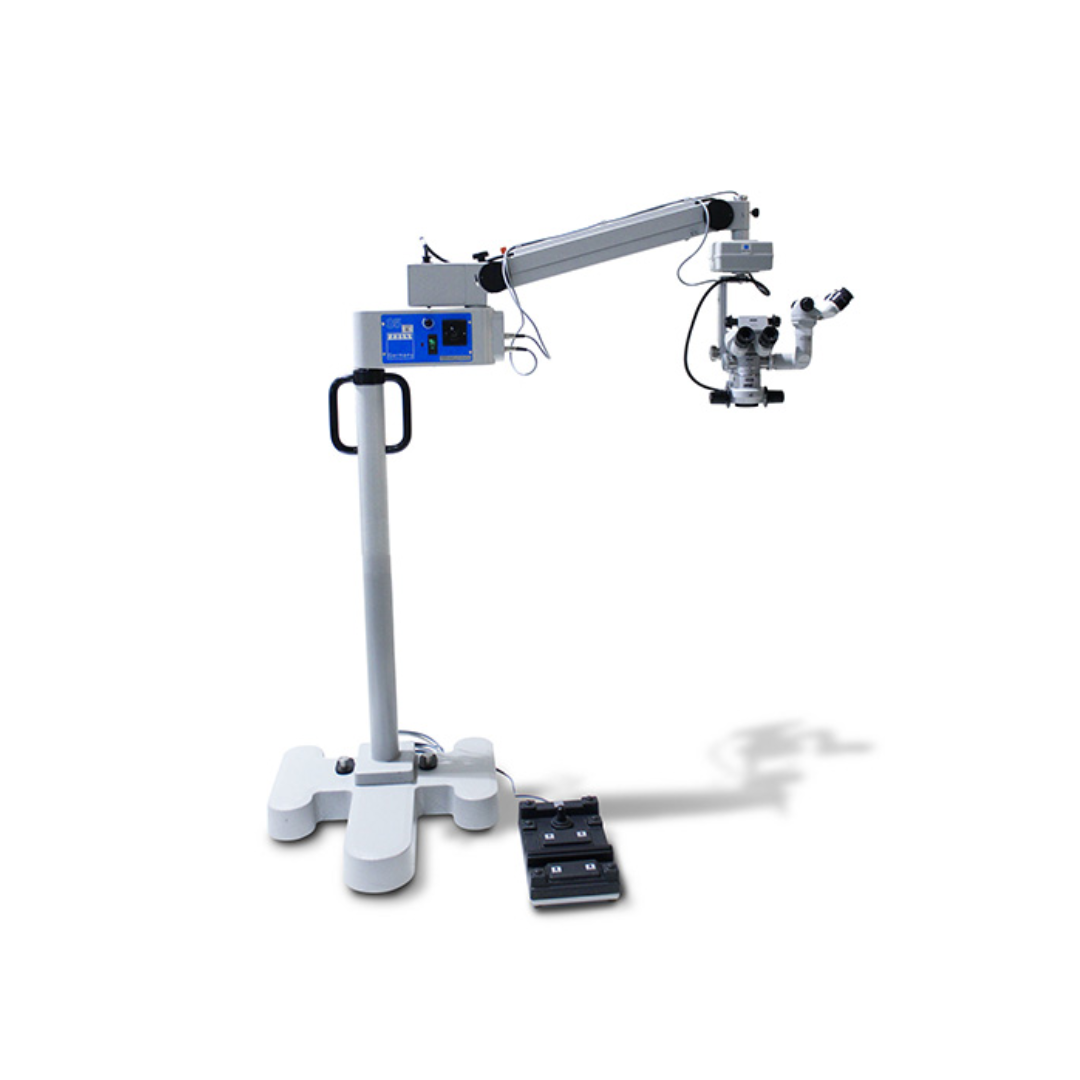

Zeiss OPMI MDU on S5 Stand

The Zeiss OPMI MDU is a versatile ophthalmic surgical microscope designed for cataract and other eye procedures. In addition, it can be used for hand and plastic surgery due to its precise optical clarity and ergonomic design. The OPMI MDU delivers consistent red reflex visualization and high-quality imaging, essential for delicate surgical procedures.

The S5 stand is a compact, manually balanced floor stand, ensuring stability and ease of maneuverability within the operating room. The microscope includes removable optical components, allowing for a face-to-face bridge, making it ideal for surgical collaborations and co-observations.

Key Features

• Exceptional Zeiss Optical Clarity for precise and sharp imaging.
• Consistent Red Reflex for improved visualization during ophthalmic surgeries.
• Multi-Disciplinary Use – suitable for ophthalmology, hand, and plastic surgery.
• Removable Optical Components enable a face-to-face bridge for dual-surgeon use.
• Zeiss XY2 Movement System for smooth positioning.
• Ergonomic Binoculars:
  • Zeiss F170 0-180° inclinable binoculars.
  • Zeiss F170 inclined binoculars.
• 4x 10x Widefield Eyepieces for an extended field of vision.
• Zeiss Beamsplitter for image sharing and documentation.
• Multi-Axis Stereo Observer Tube for dual-surgeon or teaching applications.
• Zeiss 175mm Objective Lens for enhanced focusing capability.
• Zeiss S5 Floor Stand – manually balanced and compact for easy operation.
• Zeiss Footswitch for hands-free adjustments.
• Sterilizable Covers for maintaining a sterile surgical environment.

Zeiss OPMI MDU Specifications

Surgical Microscope

• Optics: High-precision Zeiss apochromatic optics.
• Magnification: Motorized zoom system with manual fine adjustments.
• Focus: Motorized focus with 50mm travel.
• Objective Lens: f = 175 mm.
• Binocular Options:
  • Zeiss F170 inclinable 0-180° binoculars.
  • Zeiss F170 inclined binoculars.
• Eyepieces: 10x widefield eyepieces (four included).
• Beamsplitter: Yes – for image sharing and co-observation.
• Observer Tube: Multi-axis stereo observer tube for second-user viewing.

Illumination

• Light Source: Halogen-based illumination system.
• Red Reflex Illumination: Yes – provides bright and uniform red reflex.
• Filter Options: UV and neutral density filters for enhanced visibility.

Stand and Suspension System

• Stand Type: Zeiss S5 floor stand – compact and manually balanced.
• Stability: Weighted base for smooth operation.
• Manual Adjustments: Allows fine positioning for optimal surgical precision.
• Footswitch: Hands-free controls for adjustments during surgery.
