Zeiss OPMI Movena

Zeiss OPMI Movena Surgical Microscope

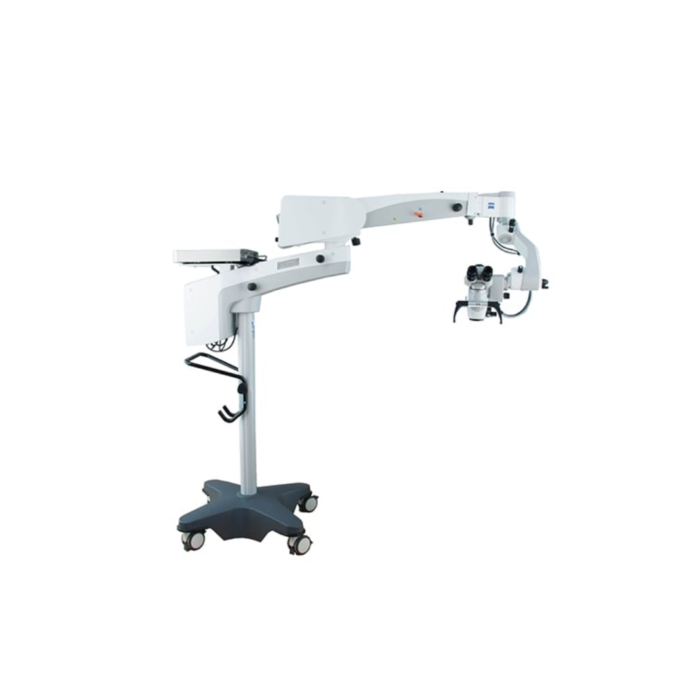

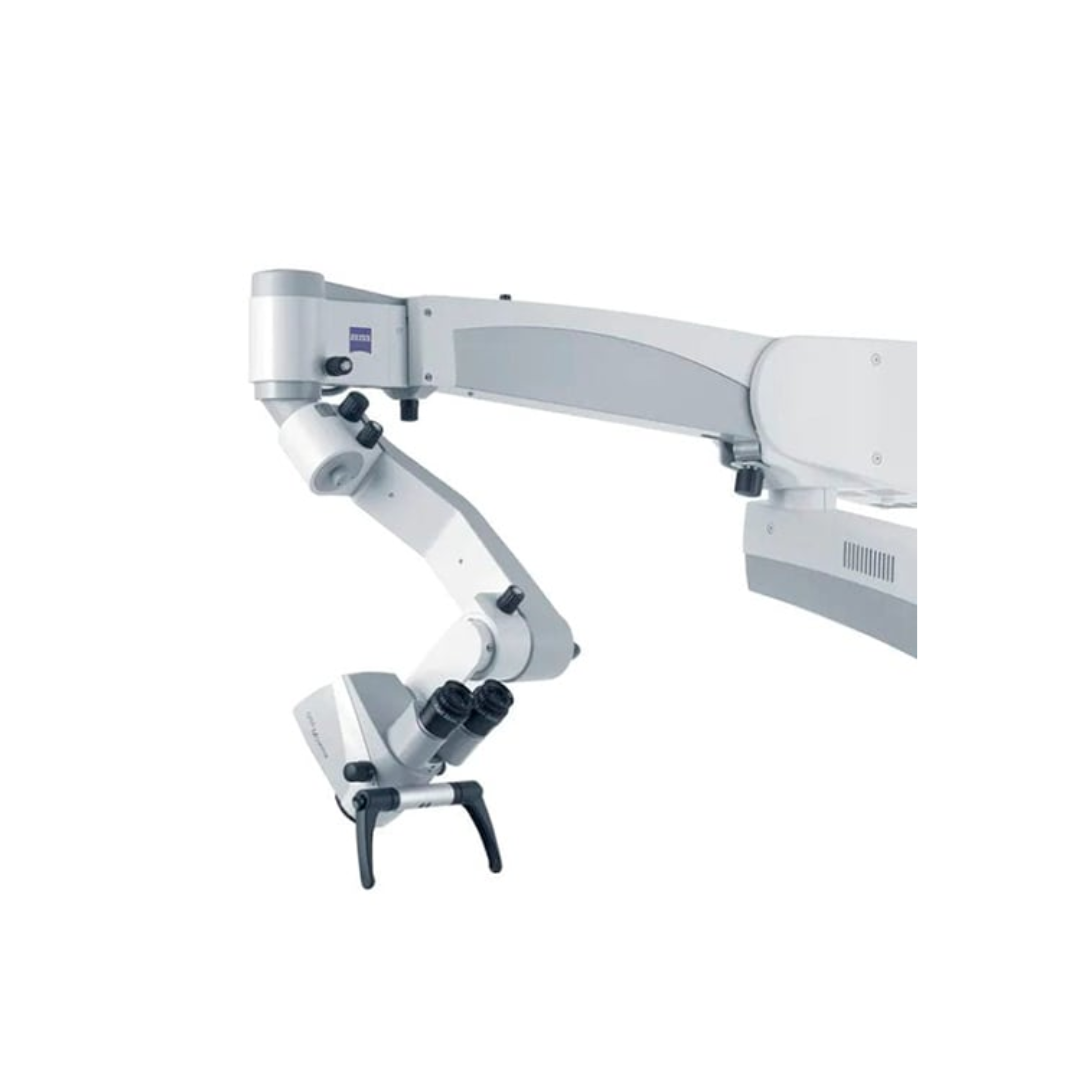

The Zeiss OPMI Movena is a high-precision surgical microscope designed for ENT procedures, routine examinations, and demanding surgical applications. Its effortless mobility allows surgeons to make precise, minor adjustments using only their heads, while the manual balancing system keeps the microscope perfectly stable, even with additional accessories attached.

The apochromatic optics, manual Varioskop focusing, and 5-step magnification changer provide high-definition imaging and exceptional depth of field. Combined with bright halogen or optional xenon illumination, the Zeiss OPMI Movena delivers sharp, color-accurate visualization, making it an ideal surgical microscope for small operating rooms and tight spaces.

Key Features

• Effortless Mobility – Surgeons can adjust the microscope position with minimal effort.
• Manual Balancing System – Ensures perfect stability, even with additional accessories.
• Apochromatic Optics – High-definition imaging with enhanced color fidelity.
• Varioskop Focusing System – Manually adjustable internal focusing for precision.
• 5-Step Magnification Changer – 1:6 zoom ratio with high-resolution optics.
• Bright Illumination – 100W halogen or optional 180W Superlux Xenon light source for superior clarity.
• Compact Design – Fits easily into small operating rooms and tight surgical spaces.
• Multiple Mounting Options – Available with S7 floor stand or S7 ceiling mount for optimal positioning.

Zeiss OPMI Movena Microscope Specifications

Magnification

• Carl Zeiss 5-step magnification changer with a 1:6 zoom ratio.

Focusing System

• Varioskop – Internal, manually adjustable focusing system.
• Working Distance – Adjustable from 200 mm to 415 mm.

Binocular Tubes & Eyepieces

• Standard – Straight binocular tube (f = 170 mm).
• Optional – 0 – 180° inclinable tube (f = 170 mm or f = 200 mm).
• Eyepieces – 10x or 12.5x widefield eyepieces for enhanced field of view.
• Optional Foldable Tube (f170 / f260) – Includes PROMAG™ function for 50% additional magnification and integrated rotation.

Illumination

• Standard – 100W Halogen Light Source with a backup lamp for uninterrupted use.
• Optional Upgrade – 180W Superlux Xenon Lamp for daylight color temperature, with a backup xenon lamp in a fast-action lamp changer.

Power & Electrical Specifications

• Rated Voltage – 115V / 230V ± 10%.
• Rated Frequency – 50 Hz – 60 Hz.
• Power Consumption – 115V, max. 10A / 230V, max. 8A.
• Circuit Breaker – Automatic.

Mounting & Weight

• S7 Floor Stand – Approx. 177 kg (with OPMI microscope).
• S7 Ceiling Mount (Rigid Column) – Approx. 80 kg (with OPMI microscope).
• S7 Ceiling Mount (Height-Adjustable Column) – Approx. 133 kg (with OPMI microscope).
