Zeiss OPMI Neuro NC-4

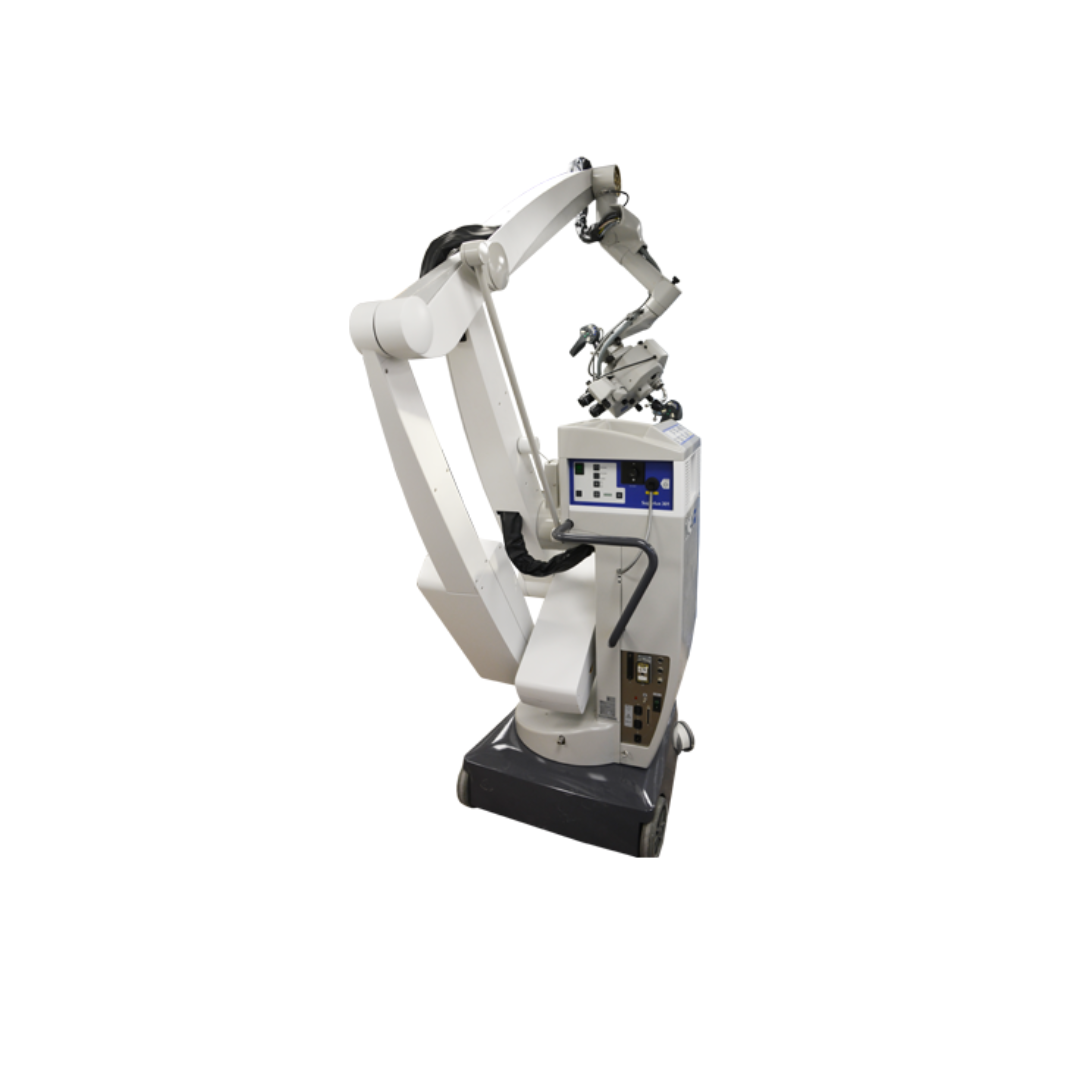

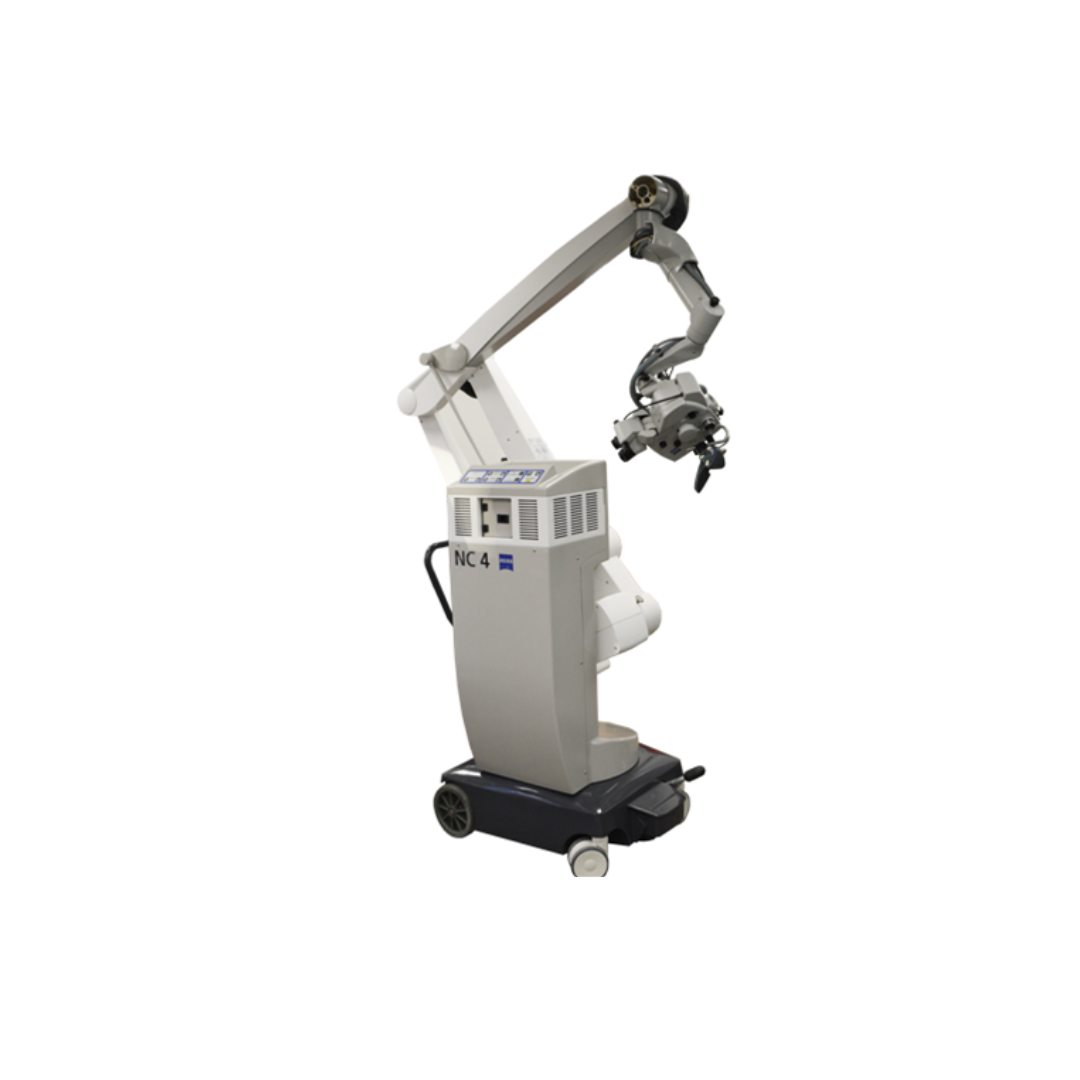

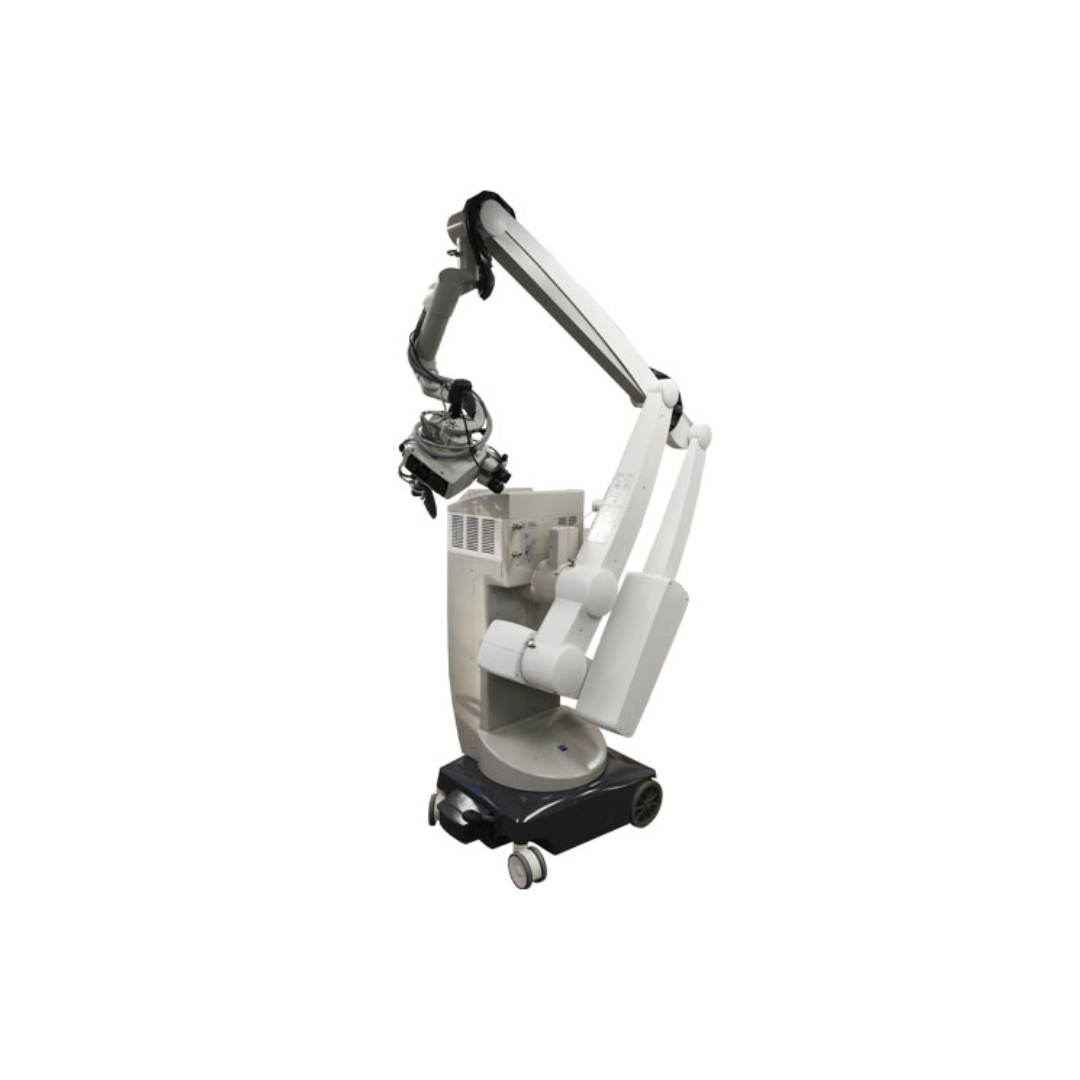

Zeiss OPMI Neuro NC-4 Surgical Microscope

The Zeiss OPMI Neuro NC-4 is one of the most advanced and successful neurosurgical microscopes developed by Zeiss. Built with apochromatic coatings, AutoFocus technology, and a Heads-Up Display, this system ensures crystal-clear imaging, enhanced depth perception, and superior color fidelity. It integrates seamlessly with leading neuronavigation platforms such as BrainLAB, Medtronic, Radionics, and Visualization Technology.

The NC-4 microscope stand features a 300W Xenon light source with a halogen backup, motorized focal adjustment, and fully adjustable binoculars for enhanced surgical ergonomics. This microscope was the precursor to the Zeiss OPMI Pentero, offering similar capabilities at a more affordable price.

Key Features

• Legendary Zeiss optics with razor-sharp imaging and enhanced depth of field
• Apochromatic coatings for distortion-free, high-fidelity color reproduction
• AutoFocus technology provides precise, real-time image adjustments
• Neuronavigation-ready, compatible with BrainLAB, CBYON, Medtronic SNT, and more
• Dual independent zoom systems for face-to-face surgical collaboration
• Motorized variable focal length (195 mm – 420 mm) for versatile positioning
• Ergonomic controls with handgrip and optional footswitch operation
• Face-to-face binocular system for cross-table procedures
• Integrated video port for 1-chip and 3-chip cameras with a C-mount interface
• Bright 300W Xenon illumination with halogen backup for consistent lighting
• Motorized balancing system ensures stable and easy positioning

Zeiss OPMI Neuro NC-4 Specifications

Optical System

• Objective Lens: Varioskop with motorized focus, adjustable 195 mm to 420 mm
• Tilt Range: 180° inclinable binoculars
• Eyepieces: 10x screw-type widefield eyepieces with integrated eyecups
• Total Magnification:
  • Minimum (Beta min.): 2.2x – 1.3x
  • Maximum (Beta max.): 13.4x – 7.6x
• Field-of-View Diameter:
  • Minimum (Beta min.): 93 mm – 163 mm
  • Maximum (Beta max.): 15 mm – 27 mm
• Depth of Field: Adjustable via double iris diaphragm for optimized imaging

Illumination System

• Primary Light Source: 300W Xenon lamp, daylight-similar spectrum for high-intensity illumination
• Backup Light Source: 100W Halogen lamp for redundancy
• Adjustable brightness to optimize lighting for different procedures

Neuronavigation & Video Integration

• Compatible with major image-guided surgical systems
• Integrated video port for:
  • 1-chip and 3-chip cameras
  • Focal length: 67 mm (C-mount interface)
  • Optional 3D imaging with additional 3-CCD camera

NC-4 Floor Stand Specifications

Power & Electrical Requirements

• Rated Voltage:
  • 115V (100 – 125V ± 10%)
  • 230V (220 – 240V ± 10%)
• Current Consumption:
  • 115V max: 12A
  • 230V max: 8A
• Frequency: 50 – 60 Hz
• Automatic circuit breakers for safety and reliability
• Electrical Outlets: Two 115/230V power outlets, each 2A max

Suspension & Mobility

• Motorized balancing system for seamless positioning
• Handgrip controls allow zoom, focus, and AutoFocus adjustments without assistance
• Compact and ergonomic design for easy maneuverability in neurosurgical setups
