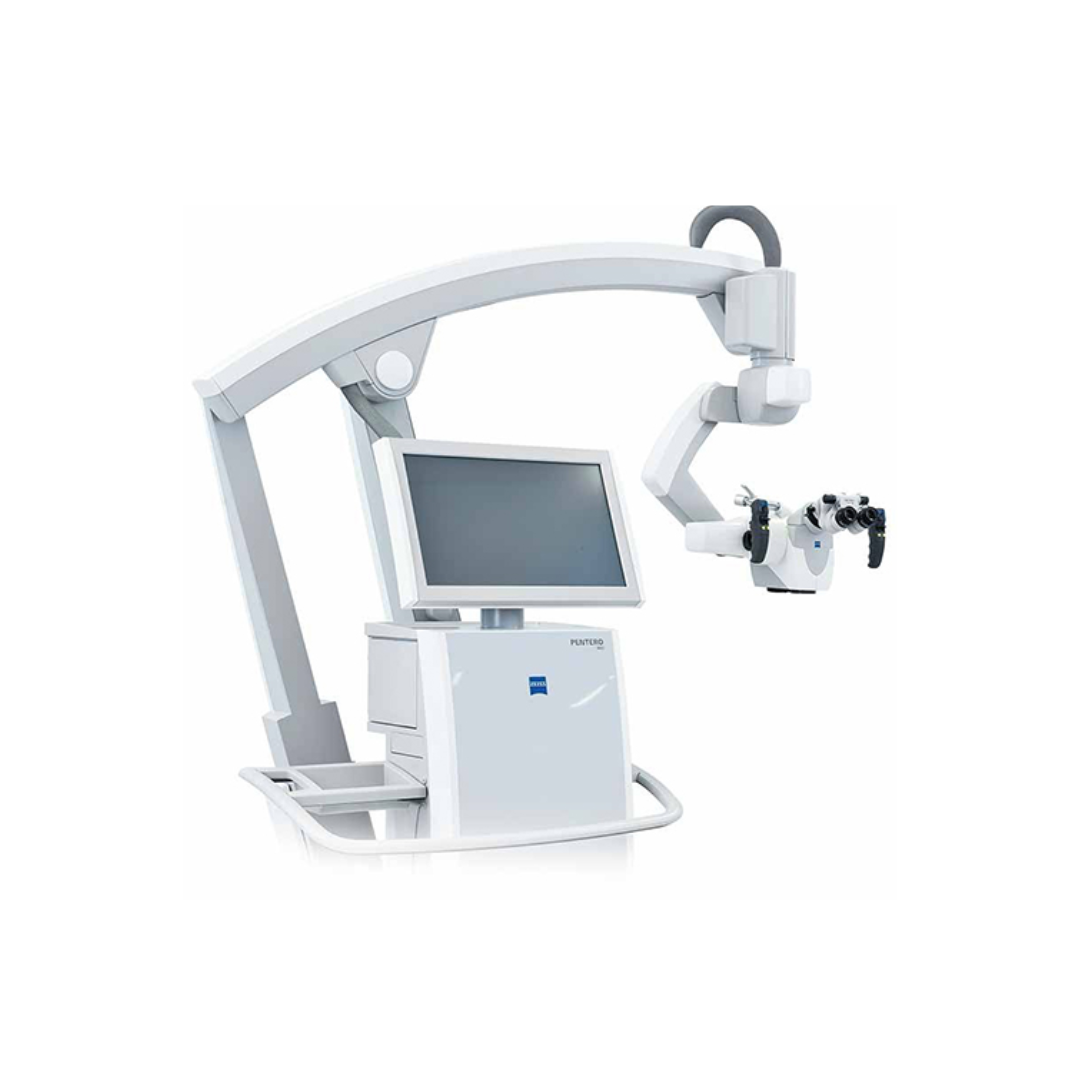

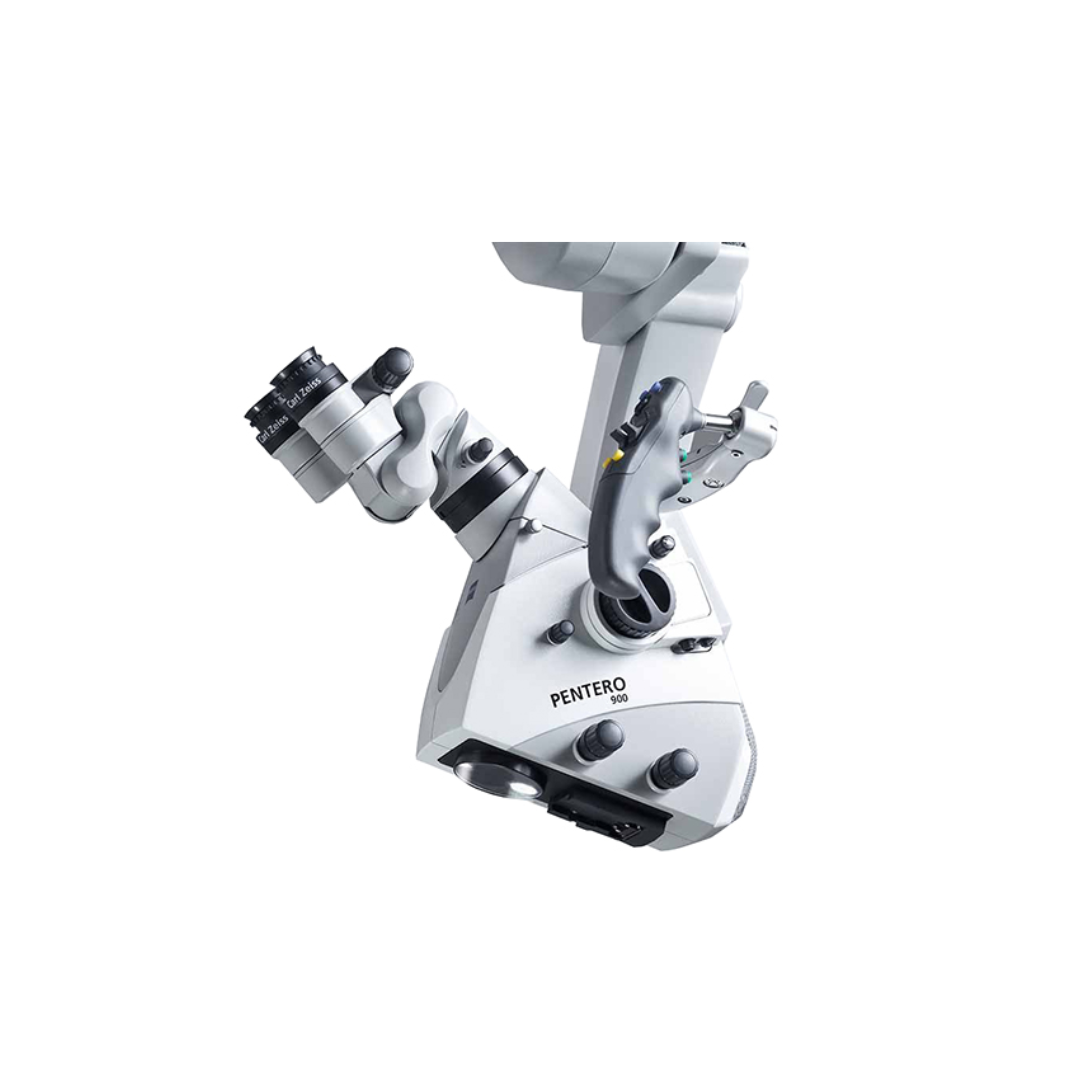

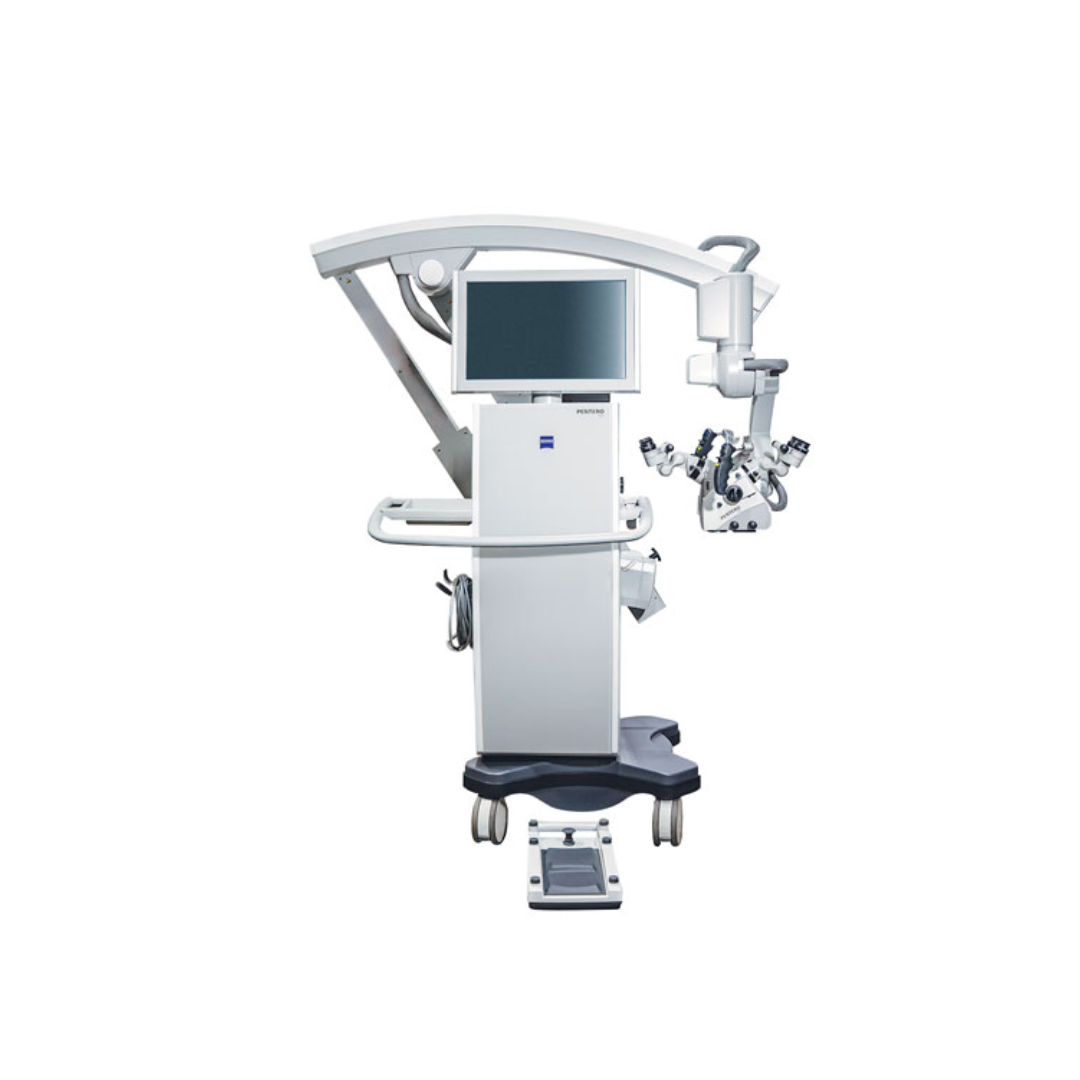

Zeiss OPMI Pentero 900 Surgical Microscope
The Zeiss OPMI Pentero 900 is an advanced surgical microscope featuring cutting-edge optical technology and fully integrated imaging capabilities. Designed for precision and ease of use, it delivers high-resolution, natural color, and crystal-clear images with its apochromatic optics. The Pentero 900 enhances surgical workflows with an intuitive HD touchscreen display, integrated high-definition video recording, and real-time data overlay. This microscope supports various surgical applications, including neurosurgery, ENT, and spine surgery, making it a versatile and powerful tool in the operating room.
Key Features
- Apochromatic Optics: Superior image clarity and color fidelity
- Varioskop System: Motorized working distance of 200–500 mm
- Laser Autofocus: High-speed precision with dual visible laser dots
- MultiVision Display: Image overlay and real-time data visualization
- Superlux 330 Illumination: Dual 300W Xenon light source for optimal brightness
- AutoBalance & AutoDrape: Streamlined setup with automatic vacuum draping
- Integrated HD Video System: Built-in camera, recorder, editor, and touchscreen monitor
- Navigation & Fluorescence Support: Compatible with Blue 400, Yellow 560, Infrared 800, and Flow 800 for enhanced visualization
- LAN & DICOM Interface: Seamless integration with hospital networks
Zeiss OPMI Pentero 900 Specifications
Optical System
- Focus: Motorized with Varioskop®, 200–500 mm working distance
- Zoom: Motorized, 1:6 ratio
- Eyepieces: 10x magnetic widefield with integrated eyecups
- Autofocus: Dual visible laser dots with automatic mode and magnetic brakes
Illumination System
- Light Source: Superlux 330 with dual 300W Xenon lamps
- Iris Control: Automatic adjustment to field of view
- Focus Light Link: Light intensity controlled by working distance
- Lamp Life Indicator: Displays remaining lifespan of the Xenon lamps
System Operation
- Handgrips: Programmable multifunctional controls
- Magnetic Clutches: Enable smooth operation across all system axes
- User Interface: Centralized touchscreen for complete system control
- Robotic XY Movement: Three-axis robotic system with variable speed control
Integrated HD Video System
- Monitor: 22″ high-definition touchscreen on an extendable arm
- Camera: Integrated 3-CMOS SD video camera
- Storage & Connectivity: Video and image capture to HDD and USB media
- DICOM & LAN: Supports hospital networking for seamless data integration
Power & Physical Specifications
- Rated Voltage:
- 115V: 100 V – 125 V
- 230V: 220 V – 240 V
- Current Consumption: Max 1,200 VA
- Frequency: 50–60 Hz
- Weight:
- System weight: approx. 358 kg
- With transport container: approx. 610 kg
