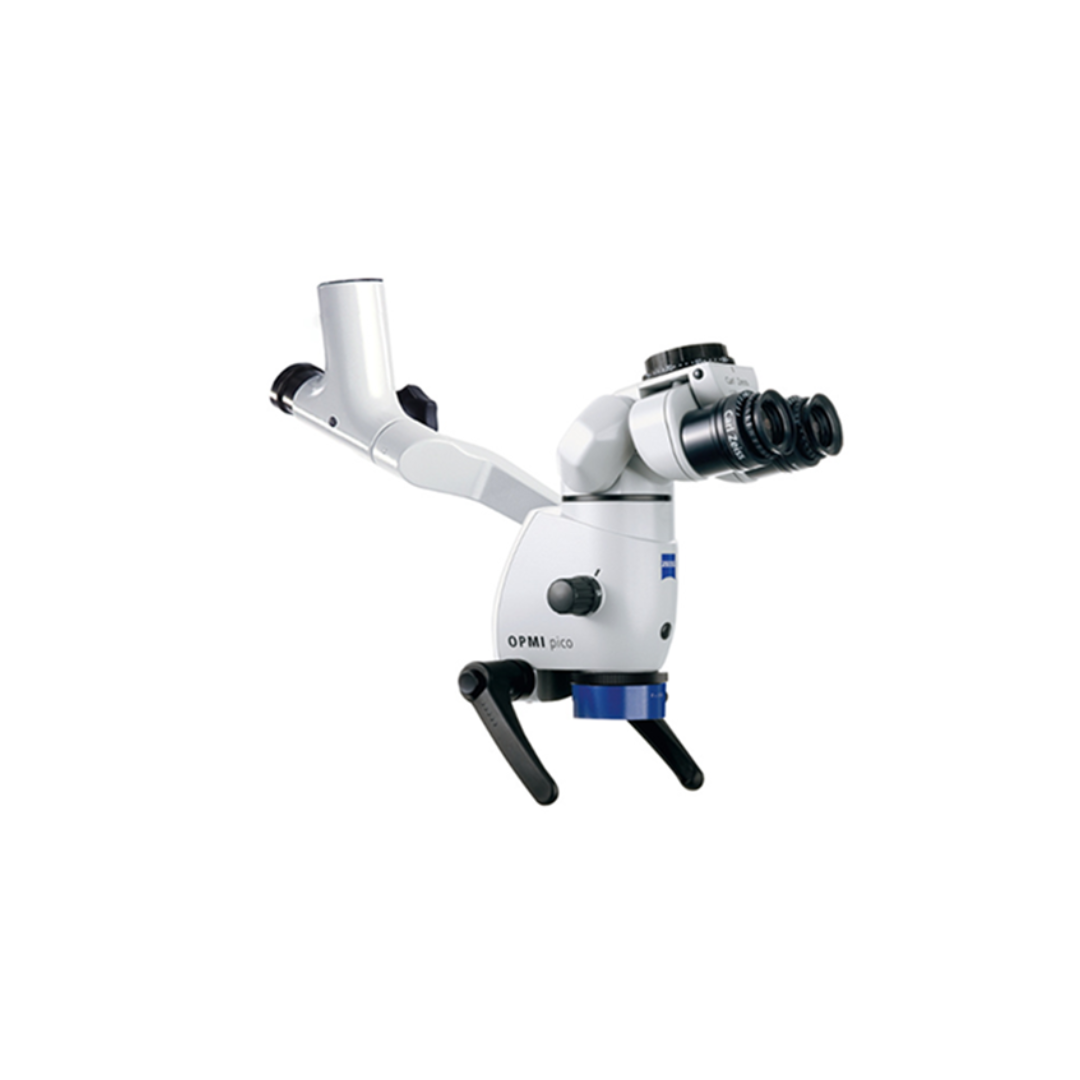

Zeiss OPMI Pico ENT Microscope

Zeiss OPMI Pico ENT Surgical Microscope

The Zeiss OPMI Pico ENT is a high-performance surgical microscope designed for a wide range of ENT diagnostic and treatment procedures. With advanced optics, precise maneuverability, and a compact design, the OPMI Pico ensures optimal visualization and ergonomic comfort for clinicians. Its lightweight construction allows for seamless integration with ENT treatment units while maintaining excellent imaging quality. Equipped with apochromatic optics, five-step magnification, and homogeneously illuminated fields of view, this microscope enhances precision and efficiency in ENT practices. Available in multiple configurations, including floor stand, wall mount, and ceiling mount, it offers flexibility to suit various clinical environments.

Key Features

• Compact and lightweight design for easy integration with ENT treatment units
• Five-step apochromatic magnification for razor-sharp imaging
• T-handgrip for precise positioning and easy handling
• High-eyepoint eyecups for visual comfort with or without eyeglasses
• Ergonomic design for comfortable seated operation
• Interchangeable objective lenses with different focal lengths
• Homogeneously illuminated field of view for clear visualization
• Multiple configurations: floor stand, wall mount, or ceiling mount
• Available with different lighting options: halogen, LED, or xenon Super Bright LED

Zeiss OPMI Pico ENT Specifications

Magnification

• Manual Carl Zeiss magnification changer, 1:6 ratio in 5 steps

Objective Lenses

• Different focal lengths from f = 200 mm to f = 400 mm, graded in steps of 50 mm
• Fine focus objective lenses: 200 mm, 250 mm, 300 mm

Binocular Tube

• 0-180° tiltable tube, f = 170 mm
• 0-180° tiltable tube, f = 200 mm (optional)
• Foldable tube f170/f260, including PROMAG™ function for an additional 50% magnification and integrated rotation function (optional)

Illumination

• 100 W halogen illumination
• Superlux® 180 (optional): 180 W xenon lamp with daylight color temperature

Power & Electrical Specifications

• Rated voltage: 115 V/230 V ±10%
• Rated frequency: 50 Hz – 60 Hz
• Power consumption:
  • Halogen illumination: 115 V/230 V, max. 2 A/1 A
• Circuit breaker: Automatic

Weight & Mounting Options

• S100 floor stand: Approx. 90 kg (with OPMI)
• S100 wall mount: Approx. 45 kg (with OPMI)
• S100 ceiling mount: Approx. 55 kg (with OPMI)
• S100 Centro carrier system: Approx. 30 kg (with OPMI)
