Zeiss OPMI VISU 160

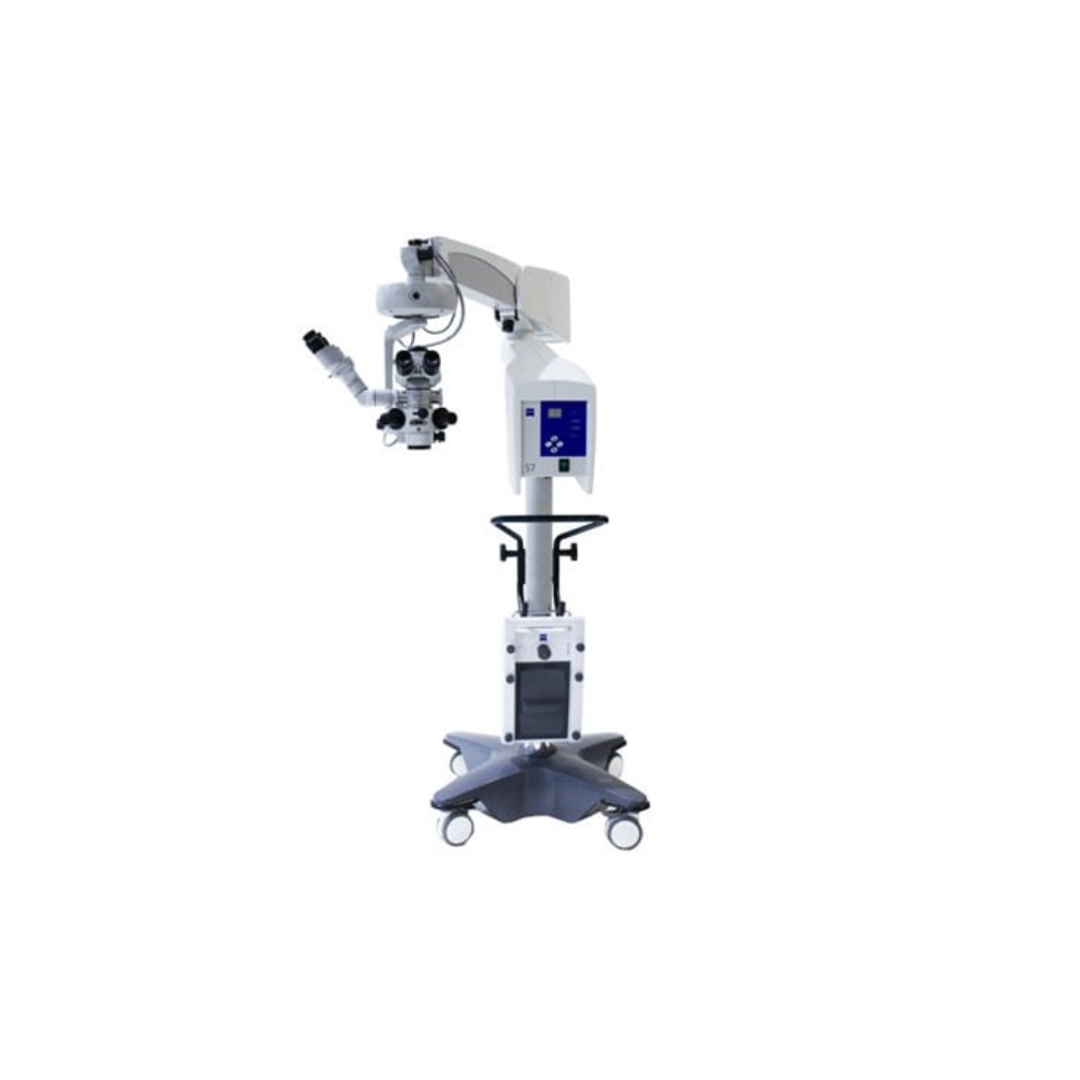

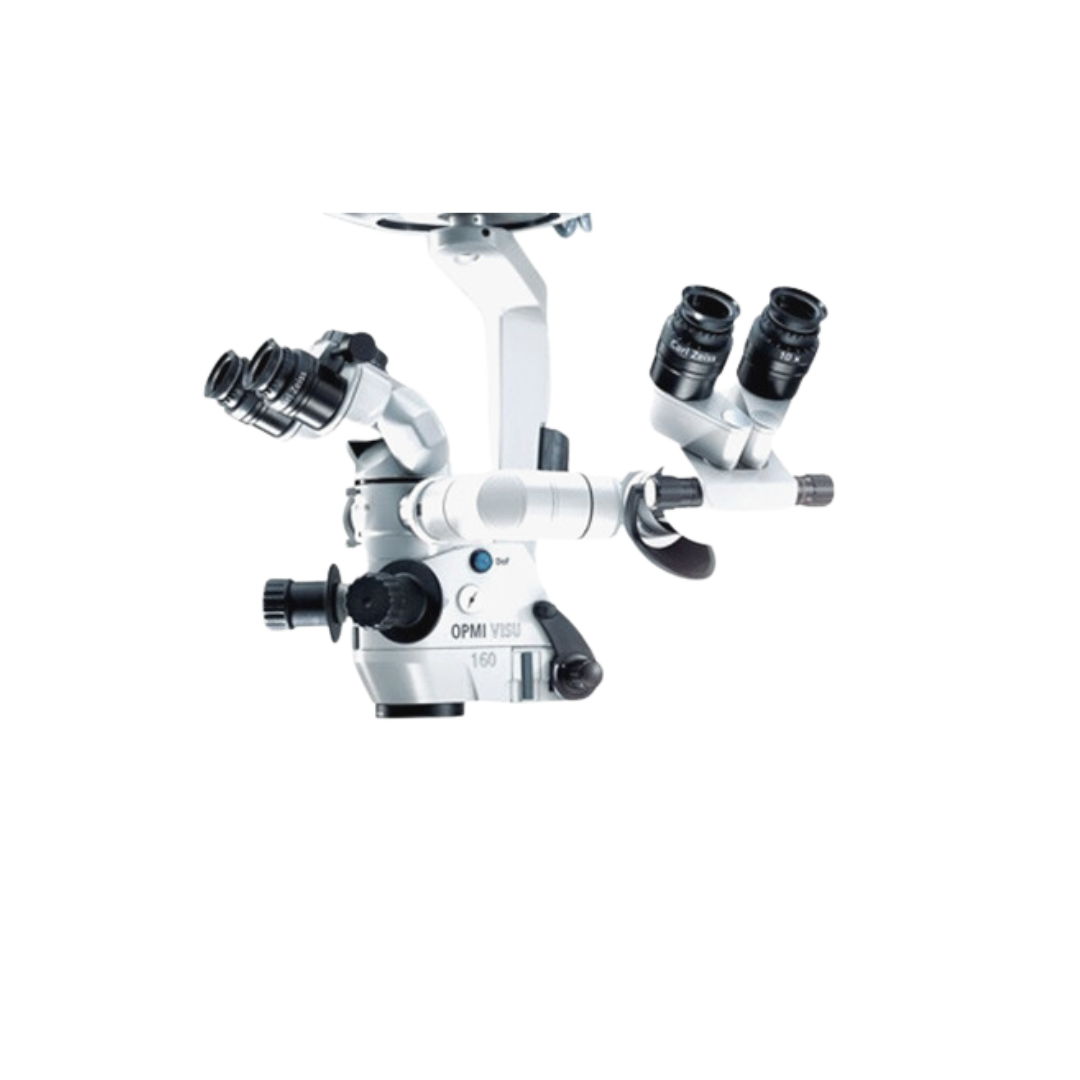

The Zeiss OPMI VISU 160 is a high-performance ophthalmic surgical microscope designed for a broad range of eye surgeries. Mounted on the Zeiss S7 floor stand, this compact and flexible system is ideal for hospitals and surgical centers performing ophthalmology procedures. The VISU 160 features slit illumination for high-contrast visualization and includes two sets of eyepieces, allowing both the surgeon and assistant to have clear, detailed views of the surgical field.
This microscope is customizable to each surgeon’s needs with DeepView depth management, BrightFlex illumination, and ergonomically designed handgrips for precision control. With apochromatic optics and advanced illumination technology, it ensures optimal image clarity and precision throughout surgical procedures.
Key Features
- Apochromatically corrected optics for superior image clarity and color fidelity
- DeepView depth of field management allowing surgeons to optimize depth perception or maximize light transmission
- BrightFlex illumination for excellent red reflex and consistent lighting conditions
- Integrated slit illumination with contrast-rich detail recognition for enhanced visualization
- Ergonomic handgrips for precise positioning and adjustments during surgery
- Adjustable zoom, focus, and X-Y movements tailored to individual surgeon preferences
- Compact and maneuverable design with the S7 floor stand for easy positioning and storage
Zeiss OPMI VISU 160 Specifications
Surgical Microscope
- Apochromatic optics with T* anti-reflex multi-coating
- Motorized zoom system with a 1:6 zoom ratio (0.4x to 2.4x magnification)
- Focusing range: 50 mm
- DeepView: Depth of field management system
X-Y Coupling
- Adjustment range: 40 mm x 40 mm
Illumination
- BrightFlex™ illumination: 6° continuous fading illumination, +2° illumination for red reflex
- Integrated slit illumination:
- Vertical: 2.5 mm width
- Horizontal: 2.5 mm and 5 mm width, movable
- Filters:
- Integrated 408 nm UV cut-off filter
- Swing-in GG475 filter for blue light reduction
- Swing-in KK40 daylight filter
- Scleral glare reduction filter
- Light Source:
- Fiber light guide
- Halogen light source (12V, 100W)
- Automatic bulb exchange in case of failure
- Optional: Swing-in fluorescence filter in suspension system
Optical Systems
- Objective lenses available: f = 200 mm, f = 175 mm
- Eyepiece options: 10x, 12.5x
- Total magnification range:
- 3.4x – 29.1x (varies by eyepiece selection)
- Field of view diameter:
- 7.5 mm – 60.6 mm (varies by eyepiece selection)
Suspension Systems
- S7 / OPMI VISU 160 floor stand
- S7 / OPMI VISU 160 ceiling mount with lifting column
- S7 / OPMI VISU 160 ceiling mount with rigid column
