Zimmer ATS 3000

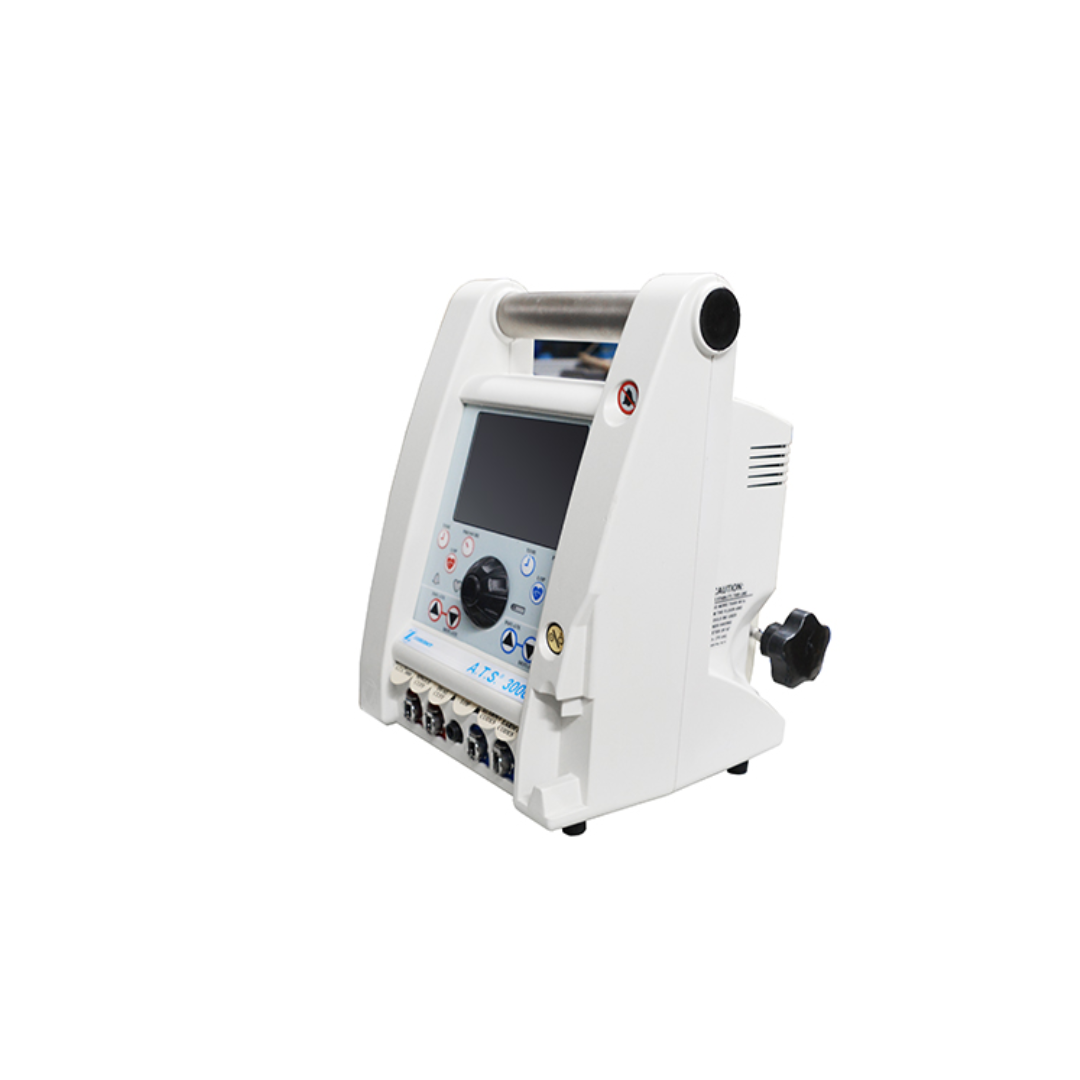

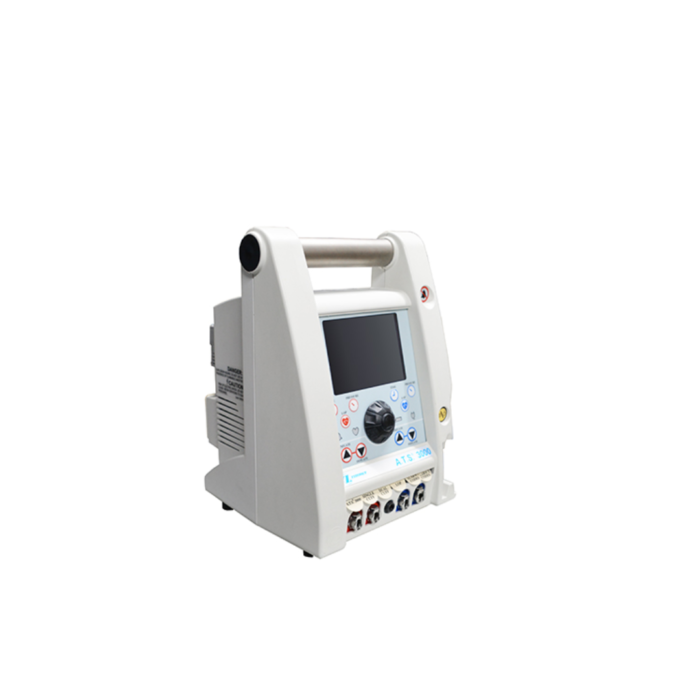

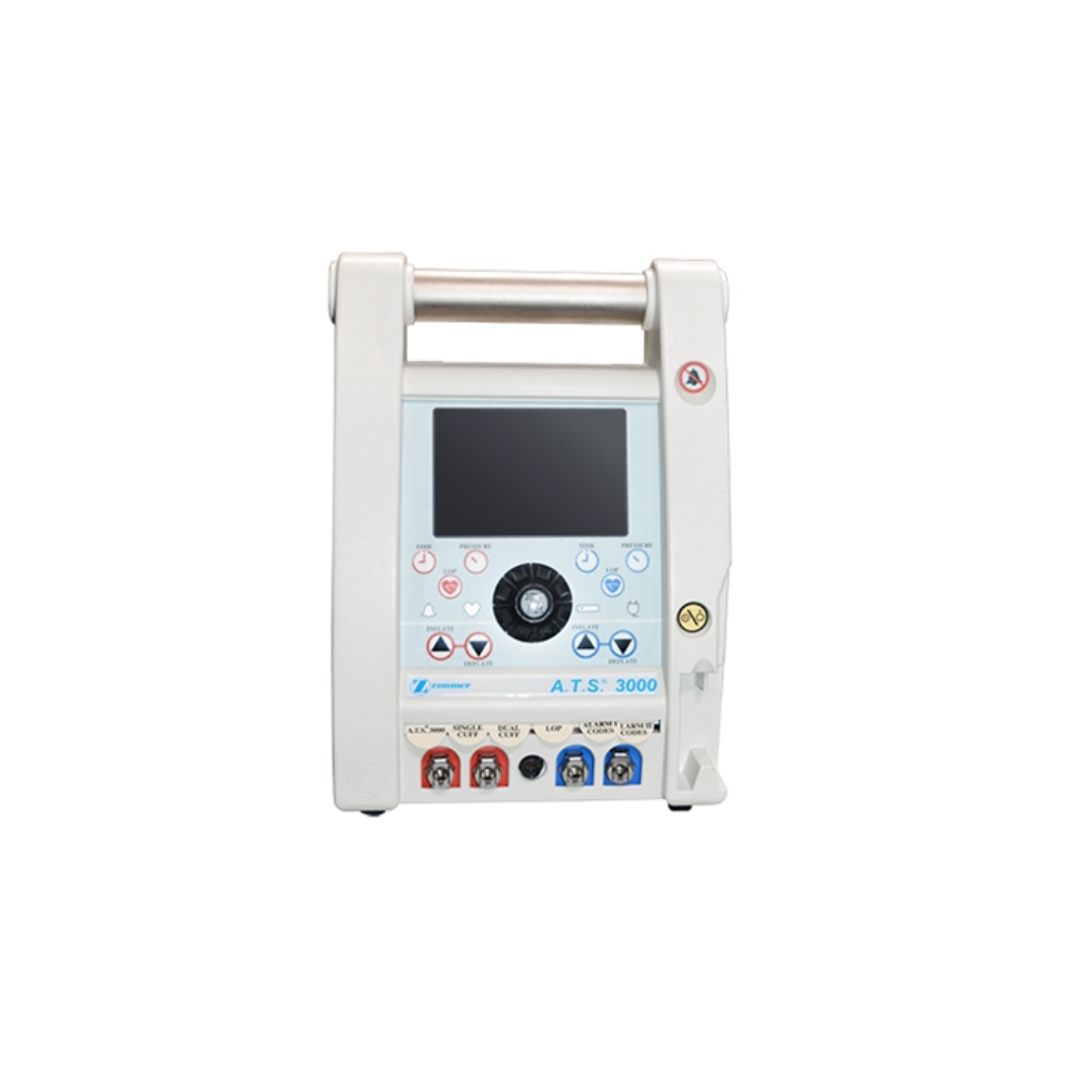

Zimmer ATS 3000 Tourniquet System

The Zimmer ATS 3000 is an advanced pneumatic tourniquet system designed to provide precise and reliable pressure control for surgical procedures requiring temporary blood flow occlusion. Equipped with dual-port and dual-cuff functionality, this system is ideal for bilateral and IVRA (Bier Block) procedures, ensuring safe and effective pressure management.

The Zimmer ATS 3000 features Limb Occlusion Pressure (LOP) technology, which automatically calculates the minimum pressure needed to achieve occlusion, reducing potential complications and improving patient safety. Unlike traditional systems that require nitrogen tanks, this unit operates entirely on ambient air, making it more efficient and easier to manage.

With microprocessor-controlled accuracy, automatic calibration checks, and a four-hour battery backup, the ATS 3000 is designed to deliver unmatched reliability in the operating room.

Advanced Pressure Management with LOP Technology

• Limb Occlusion Pressure (LOP) calculates the exact pressure required for occlusion, minimizing excessive pressure application.
• Adjustable cuff pressure range from 50 to 475 mmHg, allowing precise pressure customization for each patient.
• Self-check calibration ensures system accuracy every time the unit is powered on.

Built-in Safety and Monitoring Features

• Cuff Alert notifies users about cuff status before standby mode activation.
• Cuff Lockout feature prevents accidental deflation during bilateral or IVRA procedures.
• Bright digital display provides real-time pressure readings and alarm notifications.
• Internal diagnostics monitor program functions, memory, transducer calibration, and valve performance.

Battery Backup for Continuous Operation

• Operates on battery power for up to 240 minutes with a fully charged 12V sealed lead-acid battery.
• 24-hour full recharge time, ensuring reliable backup power for uninterrupted procedures.
• Lightweight design with a built-in carrying handle for easy transport without losing pressure.

Compact, Portable, and Easy to Use

• Uses ambient air instead of nitrogen tanks, reducing the need for additional gas supplies.
• Lightweight and easy to transport, with a clamp for secure IV pole mounting.
• Automatic calibration and microprocessor-controlled pressure regulation for hassle-free operation.

The Zimmer ATS 3000 Tourniquet System is the perfect solution for hospitals, surgical centers, and emergency medical settings, offering precision, efficiency, and safety for a variety of surgical applications. Its LOP technology, built-in safety mechanisms, and extended battery backup make it a reliable choice for modern surgical environments.
