Zimmer ATS 750

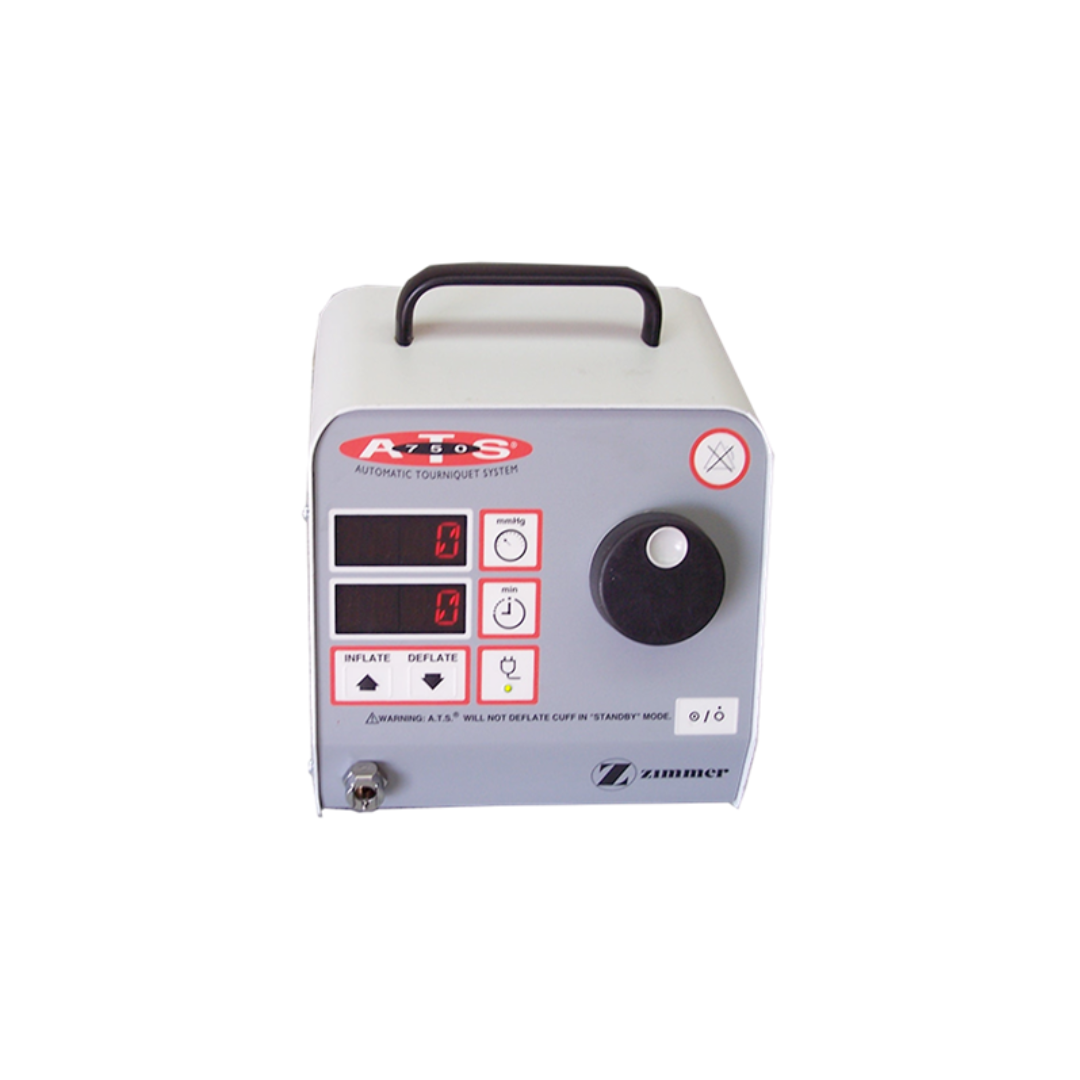

Zimmer ATS 750 Tourniquet System

The Zimmer ATS 750 is a compact, lightweight, and easy-to-use automatic tourniquet system designed for surgical procedures that require temporary blood flow occlusion. This unit operates using ambient air instead of nitrogen tanks, making it more convenient and efficient for healthcare facilities. With microprocessor-controlled pressure regulation, it delivers accuracy and reliability for improved patient safety. The ATS 750 can be used on a countertop or mounted on a pole, offering flexibility for various surgical environments.

Key Features

• Uses ambient air, eliminating the need for nitrogen tanks
• Microprocessor controls provide accurate and efficient pressure regulation
• Compact and lightweight design for easy portability
• Audible and visual alarms for enhanced safety
• Large LED display for clear pressure and time readings
• Battery backup ensures continued operation in case of power failure

Pressure Control and Monitoring

• Cuff pressure range: 50 – 475 mmHg, adjustable in 5 mmHg increments
• Pressure accuracy: ±5 mmHg for consistent performance
• Pressure regulation: ±6 mmHg of the set point, ensuring stable occlusion
• Maximum pressure: 475 mmHg

Safety and Alarm Features

• Audible and visual alarms alert users of pressure fluctuations and time limits
• Built-in time alarm with adjustable settings from 5 to 240 minutes, in 5-minute increments
• Internal diagnostics monitor program memory, valve actuation, and transducer calibration

Battery Backup and Power Supply

• Operates on battery power for a minimum of 30 minutes with a fully charged battery
• Rechargeable 12V sealed lead acid battery with 1.2 amp hours capacity
• Full battery recharge time of 24 hours for reliable backup power
• Auto-switching power supply compatible with 100 – 240 VAC, 50/60 Hz

Compact and Versatile Design

• Weighs only 7.7 lbs (3.5 kg), making it highly portable
• Can be used on a countertop or mounted on an IV pole for convenience
• Green LED indicator for AC power status
• Easy-to-use controls, including pressure adjustment, timer settings, and alarm silencing

The Zimmer ATS 750 Tourniquet System is a reliable and efficient solution for healthcare facilities seeking a compact and easy-to-use tourniquet device. With its microprocessor control, ambient air operation, and built-in safety features, it ensures precise pressure management while enhancing patient safety during surgical procedures.
