Zoll E Series

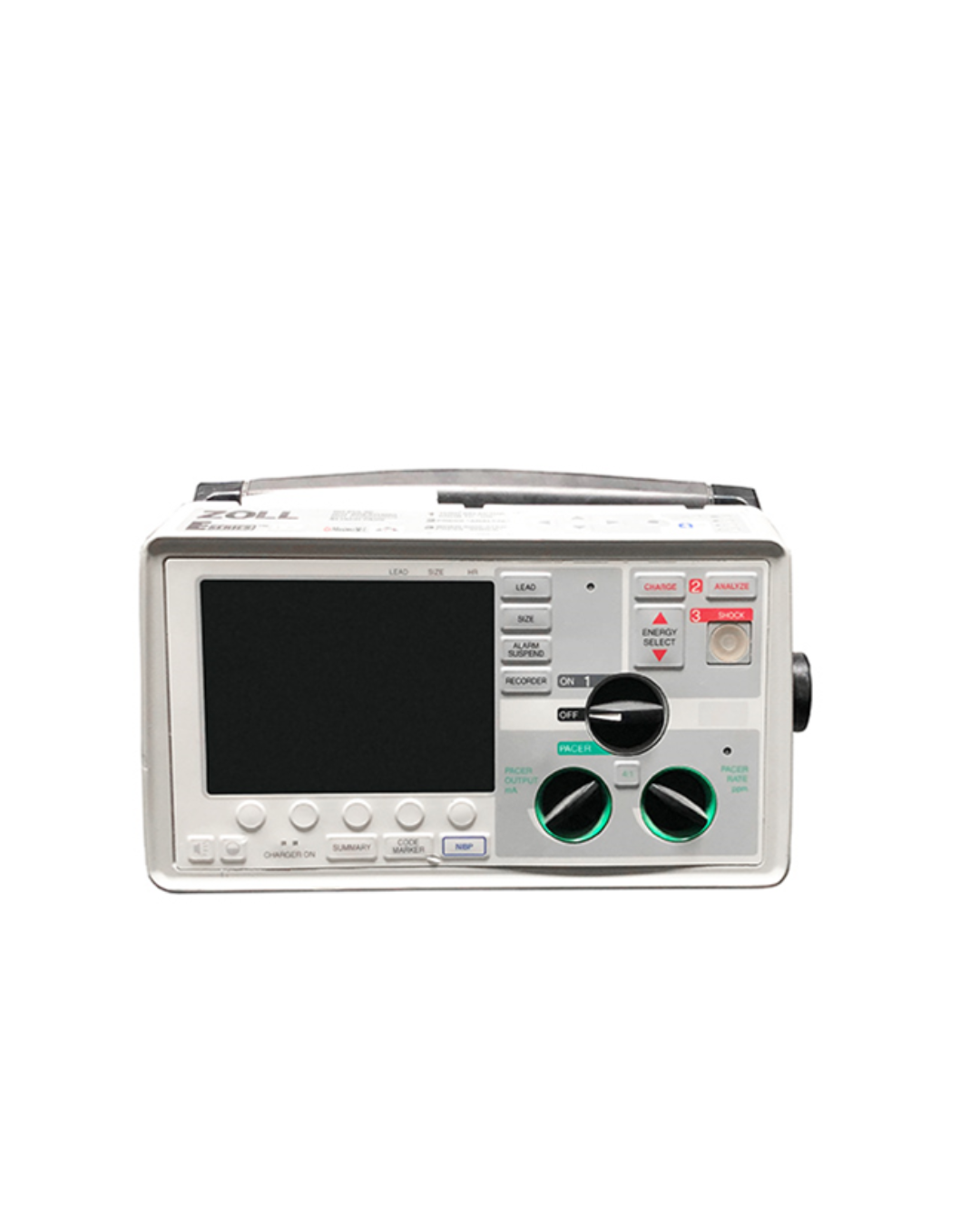

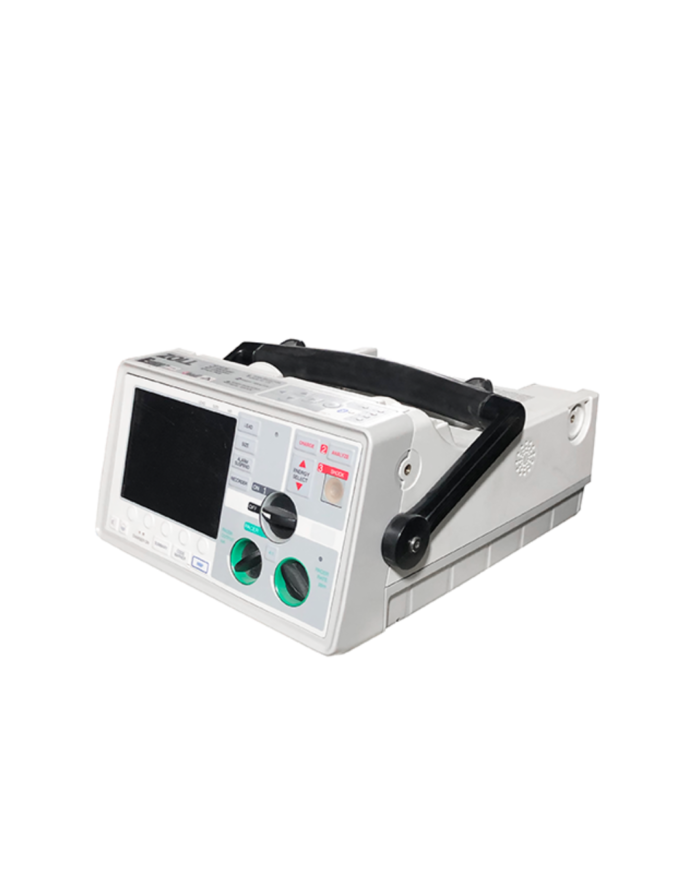

Zoll E Series Defibrillator/Monitor

The Zoll E Series Defibrillator/Monitor is a compact, portable device designed for use in both hospital and EMS settings. It combines defibrillation, ECG monitoring, and pacing functions in one unit, providing an all-in-one solution for rapid response in emergency cardiac care. The device offers advanced features such as real-time 12-lead ECG analysis, integrated CPR feedback, and versatile connectivity options to transfer data via cellular, fax, or data card. Its lightweight design and rugged construction make it ideal for transport, while its intuitive interface and clearly defined controls ensure ease-of-use in high-pressure situations.

Key Features

• Comprehensive Resuscitation Functionality:
  • Offers both manual defibrillation and AED modes with advanced shock advisory capabilities.
  • Integrated pacing capabilities enable noninvasive transcutaneous pacing when required.
• Advanced ECG Monitoring:
  • Continuously monitors 12-lead ECG, with the ability to display multiple waveforms and numerics simultaneously.
  • Provides real-time feedback on chest compression depth, rate, and overall CPR quality with Real CPR Help technology.
• User-Friendly Design:
  • Compact and lightweight, making it easy to transport and use in various settings.
  • High-resolution 6.5-inch color active matrix TFT display offers clear visuals, even in bright sunlight or low-light conditions.
  • Customizable screen views allow users to tailor the display to their needs.
• Robust Data Management:
  • Stores critical event data, including waveform captures and annotations, which can be transferred via RescueNet Code Software or a PCMCIA card.
  • Enables post-event review and documentation of patient data for quality improvement.
• Versatile Connectivity:
  • Supports wireless data transmission, enabling seamless integration with hospital networks for real-time data sharing and reporting.

Detailed Specifications

Physical Characteristics

• Dimensions:
  • Height: 5.75 in (14.6 cm)
  • Width: 13.1 in (33.3 cm)
  • Depth: 10.5 in (26.7 cm)
• Weight:
  • Approximately 13.2 lbs (6.0 kg) with battery

Defibrillator Functionality

• Waveform:
  • Biphasic waveform: Low-current, impedance-compensated, optimized terminating current, truncated exponential biphasic.
• Energy Output Options:
  • Energy settings (Adult Mode): 2, 5, 7, 10, 20, 30, 50, 70, 100, 150, 200, 300, and 360 joules.
• Charge Time:
  • Less than 10 seconds to deliver 360 joules (typical), with charge indicators that provide both audible and visual feedback.
• Paddle Configuration:
  • Standard adult paddles provided; internal pediatric paddles available via adapters.
  • Paddle cord length: 10 ft (3 m).

Monitoring & Display

• ECG Monitoring:
  • Supports 3-lead, 5-lead, and 12-lead ECG acquisition through various cable configurations.
  • Digital heart rate display ranges from 20 to 300 BPM with configurable alarm settings.
• Display:
  • 6.5-inch color active matrix TFT display with a resolution of 640 x 480 pixels.
  • Sweep speed: 25 mm/sec; viewing time: 4 seconds minimum.
• Printer:
  • Integrated high-resolution thermal printer for continuous ECG strip documentation.
  • Paper size: 50 mm wide by 30 m long.

Pacing (Optional)

• Noninvasive Pacing:
  • Provides external transcutaneous pacing with adjustable pulse parameters.

Additional Monitoring (Optional)

• SpO₂ Monitoring:
  • Supports noninvasive oxygen saturation monitoring with customizable alarm settings.

Communications & Data Management

• Connectivity:
  • Data transfer via cellular, fax, PCMCIA card, or serial connection.
• Data Storage:
  • Capable of storing critical event records, continuous ECG waveforms, and trend data for post-event review.
