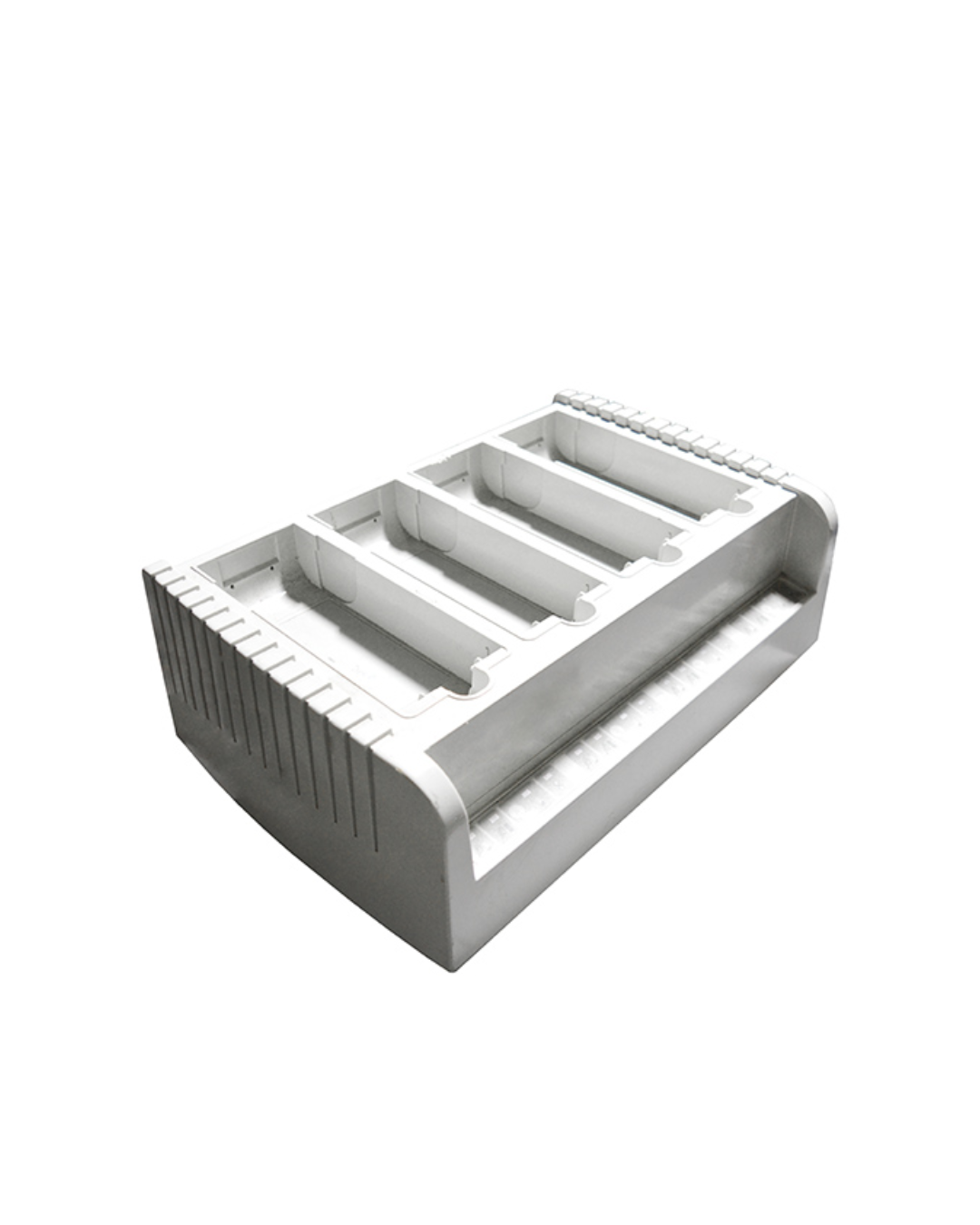

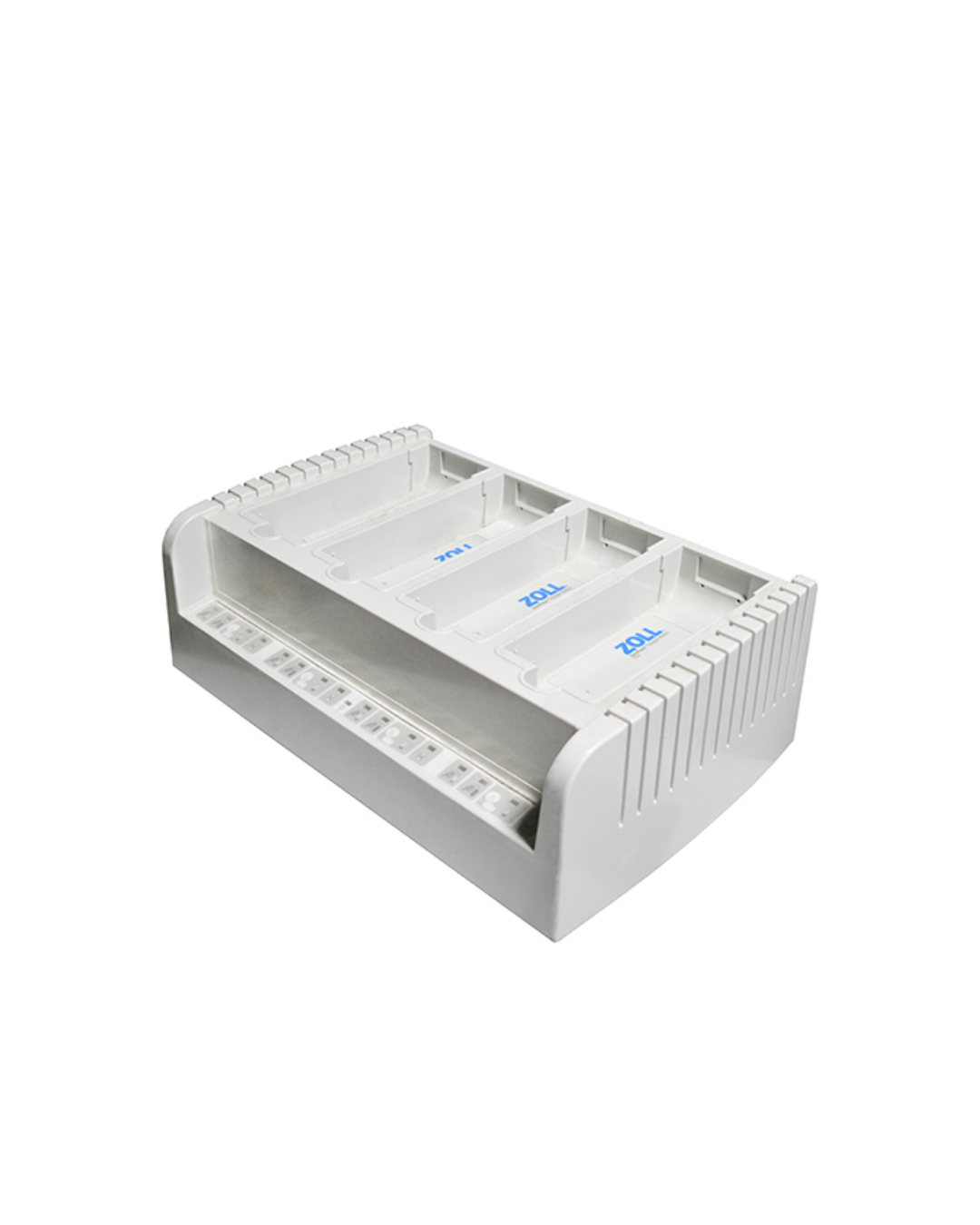

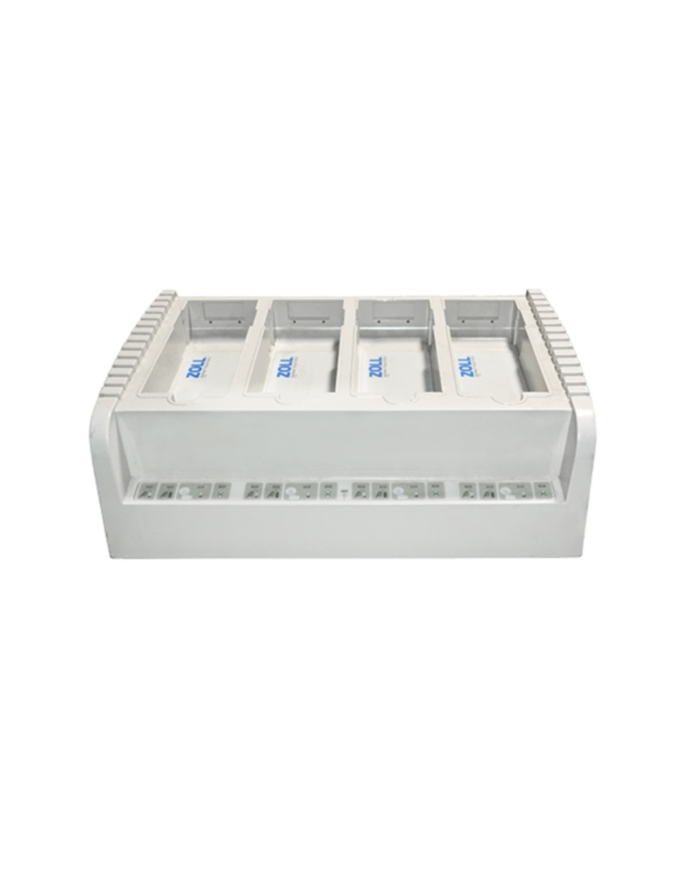

Zoll SurePower Charging Station

Zoll SurePower Charging Station

The Zoll SurePower Charging Station is a versatile 4-bay battery charging and testing system designed specifically for Zoll rechargeable defibrillator batteries. It efficiently charges, tests, and recalibrates up to four batteries simultaneously, working seamlessly with both Zoll Lithium-ion and lead acid batteries. With three distinct charging methods—AutoTest, QuickCharge, and ManualTest—the SurePower Charging Station measures battery capacity to ensure your Zoll defibrillators are always ready for emergency use. It is compatible with a range of battery models including SurePower, SurePower II, 4410, 4410 Smart, 4410 SmartReady, and XL batteries, serving various Zoll defibrillator series such as the R Series, E Series, AED Pro, X Series, Propaq MD, and Propaq M Monitor.

Key Features

• 4-Bay Charging & Testing:

  • Simultaneously charge, test, and recalibrate up to four Zoll rechargeable defibrillator batteries.

• Multiple Charging Methods:

  • AutoTest Mode: Automatically tests battery capacity during charging.
  • QuickCharge Mode: Rapidly charges batteries in a short time frame.
  • ManualTest Mode: Allows user-controlled battery testing.

• Broad Battery Compatibility:

  • Supports Zoll battery types: SurePower, SurePower II, 4410 (Smart/SmartReady), and XL battery packs.

• Ensured Readiness:

  • Continuously monitors battery capacity to guarantee defibrillator performance in emergency situations.

Detailed Specifications

Physical Dimensions

• Height: 6 in (15.2 cm)
• Width: 11 in (27.9 cm)
• Length: 16 in (40.6 cm)
• Weight: 15 lb (6.8 kg) without batteries

Power Specifications

• Power Requirements:
  • 100-240 Vrms, 50/60 Hz (or 120 Vrms, 400 Hz)
• Power Consumption:
  • Maximum 200 VA

Environmental Conditions

• Operating Temperature:
  • 32°F to 122°F (0°C to 50°C)
• Optimal Battery Charging Temperature:
  • 59°F to 95°F (15°C to 35°C)
• Storage and Transportation Temperature:
  • -40°F to 158°F (-40°C to 70°C)
• Humidity:
  • 5% to 95% relative humidity (non-condensing)
