Zoll X Series

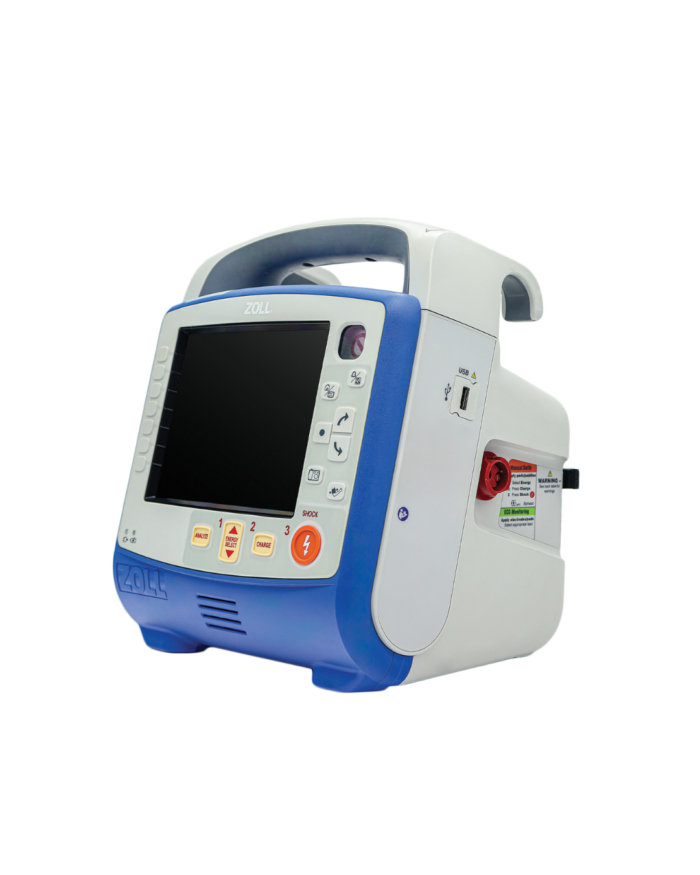

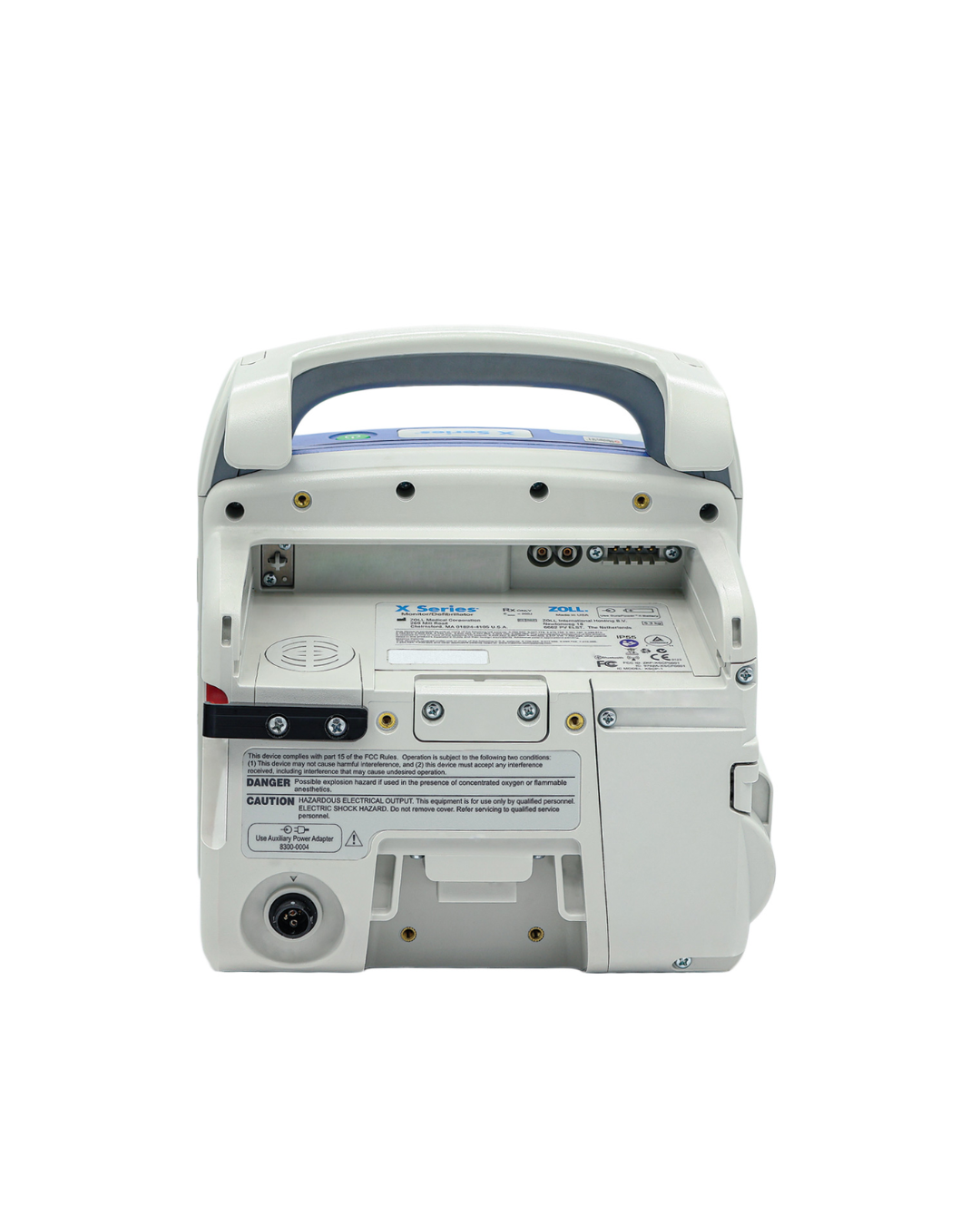

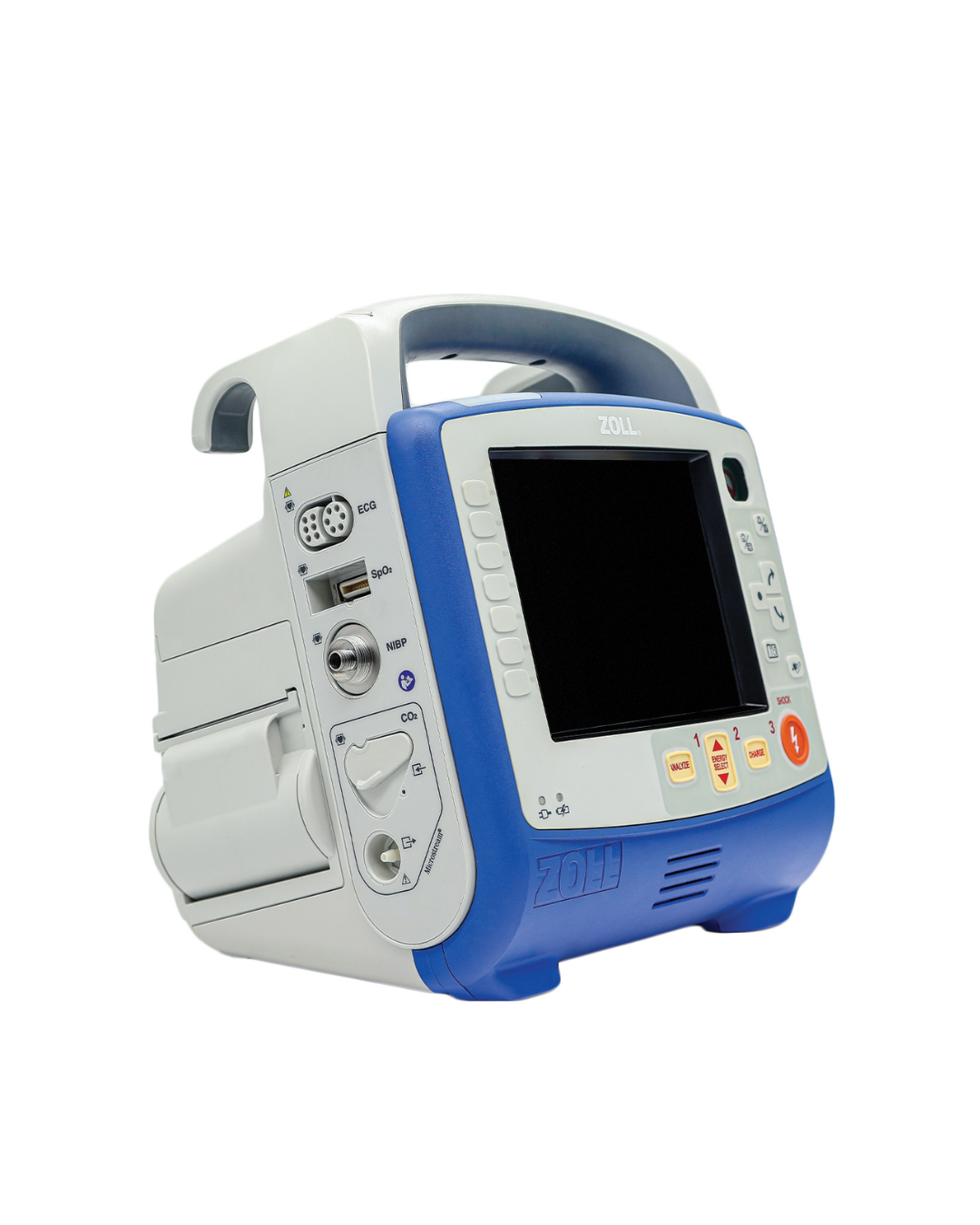

Zoll X Series Defibrillator/Monitor

The Zoll X Series Defibrillator/Monitor is a cutting-edge, portable device designed for rapid resuscitation and advanced patient monitoring in critical transport and emergency settings. It combines defibrillation with comprehensive monitoring of ECG, CO-oximetry, noninvasive and invasive blood pressures (NIBP and IBP), capnography (CO₂), temperature, and respiration. The Zoll X Series is engineered to deliver reliable performance during traumatic events, cardiac arrest, respiratory distress, and pediatric emergencies.

Key features include innovative Real CPR Help and Real BVM help technologies, which provide real-time feedback on chest compression depth and rate, significantly improving resuscitation effectiveness. With its rechargeable battery and auxiliary AC power option, the device ensures continuous operation during transport. The high-resolution Color LCD display offers customizable views that can show multiple waveforms and numerical data simultaneously, while built-in data storage and wireless connectivity facilitate seamless data transfer to hospital systems.

Key Features

• Advanced Multi-Parameter Monitoring:

  • Continuously monitors ECG, CO-oximetry, NIBP, IBP, capnography, temperature, and respiration.
  • High-resolution Color LCD displays waveforms and vital numeric data concurrently.

• Enhanced Defibrillation & CPR Support:

  • Offers both automated and manual defibrillation modes.
  • Integrated Real CPR Help and Real BVM help technologies provide real-time feedback on compression depth and rate.

• Portability & Versatility:

  • Designed for critical transport with rechargeable batteries and an optional AC power supply.
  • Suitable for a wide range of patients—from neonates to adults—in EMS, helicopters, and hospital settings.

• Robust Data Management & Connectivity:

  • Internal memory stores patient data, with options for data transfer via USB or wireless connectivity.
  • Easily integrates with hospital networks for post-event analysis and quality review.

• Rugged, Transport-Ready Design:

  • Compact and lightweight, engineered to meet demanding transport and airworthiness standards.
  • Successor to the Propaq MD, offering significant enhancements in functionality and ease-of-use.

Detailed Specifications

Physical & Power Specifications

• Design:
  • Compact and lightweight for ease of transport.
• Power:
  • Operates on rechargeable lithium-ion batteries or auxiliary AC power.

Display & Connectivity

• Display:
  • 6.5-inch Color LCD (640 x 480 resolution, 800 MCD brightness) with customizable display modes (Standard, High Contrast, NVG Friendly).
• Connectivity:
  • Built-in USB port and wireless capabilities enable seamless data transfer and integration.

Monitoring Capabilities

• Vital Parameters:
  • ECG (3-lead, 5-lead, or 12-lead), CO-oximetry, noninvasive/invasive blood pressure (NIBP/IBP), capnography (CO₂), temperature (two channels), and respiration.
• Real-Time Feedback:
  • Real CPR Help and Real BVM help technologies guide rescuers to optimize chest compressions during CPR.
